Littelfuse 0JTD060.T Fuse

FUSE 600V T/D CLASS J 60A

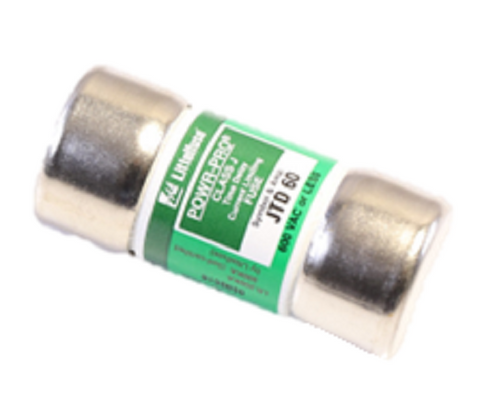

Littelfuse 0JTD060.T Class J Time-Delay Fuse – 60A, 600V AC / 300V DC, POWR-GARD® Series

The Littelfuse 0JTD060.T is a high-performance Class J time-delay fuse engineered for reliable overcurrent protection in demanding industrial and electrical applications. With a 60A current rating, 600V AC and 300V DC voltage ratings, this cartridge-style fuse is part of the trusted POWR-GARD® / POWR-PRO® JTD Series by Littelfuse.

Designed for transformer protection and other high-interrupt applications, the 0JTD060.T offers a slow blow (time-delay) response, allowing temporary inrush currents without unnecessary fuse activation. It features a high interrupting capacity of 200kA at 600VAC and 20kA at 300VDC, ensuring dependable safety and performance.

Key Features:

• Manufacturer: Littelfuse Inc.

• Series: POWR-GARD®, POWR-PRO® JTD

• Part Number: 0JTD060.T

• Current Rating: 60 Amps

• Voltage Rating: 600V AC / 300V DC

• Response Time: Time-Delay (Slow Blow)

• Fuse Type: Cartridge, Non-Standard

• Mounting Type: Requires Holder

• Class: J

• Interrupt Rating: 200kA @ 600VAC, 20kA @ 300VDC

• Applications: Ideal for transformer protection and other industrial circuit protection needs

• Certifications: UL Listed, CSA Certified, CE Compliant

Applications Include:
✔ Transformer Protection
✔ Motor Control Centers
✔ Panelboards
✔ Industrial Electrical Systems

Choose the Littelfuse 0JTD060.T for reliable, high-capacity overcurrent protection in critical electrical systems. Trusted worldwide for safety and performance.
