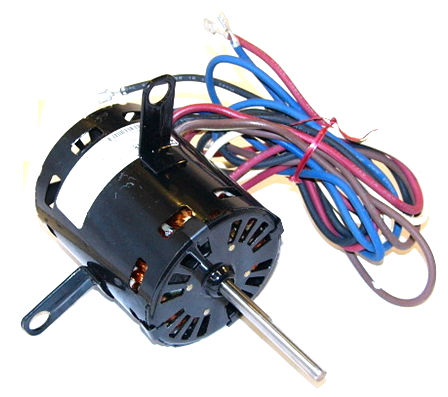

Enviro-tec PM-02-0022 Motor

The Enviro-tec PM-02-0022 Motor is a high-performance 1/13 HP HVAC replacement motor engineered specifically for technical compatibility with 277V single-phase systems. Operating at a peak speed of 1550 RPM, this direct drive motor is a critical component for maintaining secondary airflow in Enviro-tec fan coil units, VAV terminals, and blower coil assemblies. Built with a 3.3-inch diameter frame, this permanent split capacitor (PSC) design offers superior efficiency and thermal protection for heavy-duty commercial applications.

For field technicians, the PM-02-0022 provides a seamless drop-in solution, featuring a 1/2-inch shaft diameter and a multi-tap configuration capable of supporting 1/13, 1/26, and 1/56 HP requirements. This versatility allows contractors to fine-tune airflow performance based on specific duct static pressure and zone demands. As a genuine OEM Enviro-tec part, it ensures precise electrical synchronization with existing fan speed controllers, preventing the common resonance issues found with generic aftermarket alternatives.

• Multi-HP Versatility: Supports 1/13, 1/26, and 1/56 HP settings for precise system balancing.
• Industrial Voltage Rating: Optimized for 277V 1PH commercial electrical grids.
• Standardized Frame: 3.3-inch motor diameter ensures compatibility with standard Enviro-tec blower housings.
• Reliable Operation: 1550 RPM rated speed provides consistent torque for high-static HVAC applications.
• OEM Integrity: Prevents premature component wear by matching original factory specifications exactly.

Is the PM-02-0022 compatible with 120V systems?
No, this motor is specifically wound for 277V AC operation. Attempting to power this unit with 120V or 208/230V will result in failure or significantly reduced performance.

Can I use this motor to replace a Fasco 7164-1536?
Yes, the PM-02-0022 is the direct OEM equivalent for the Fasco 7164-1536 motor often found in Enviro-tec equipment.

What is the shaft size for mounting?
This motor features a 1/2-inch diameter shaft with a 3-inch length, standard for most fan coil motor replacements in this series.
