Fasco 30-435 Motor Base

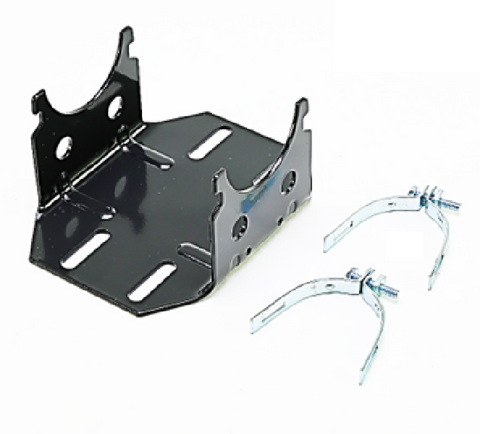

The Fasco 30-435 Resilient Motor Base is a critical mounting component for HVAC professionals requiring a precise fit for residential and commercial blower assemblies. This 3-inch resilient motor base is engineered to cradle motors with a verified 4.35-inch distance between cradle arms, ensuring a secure, drop-in replacement that eliminates excessive mechanical play. For optimal alignment with the 3.0-inch shaft center height, this HVAC motor mounting base must be paired with 2.5-inch diameter resilient rings. Using this cradle motor mount facilitates superior vibration isolation, which is essential for reducing harmonic noise and preventing premature bearing wear in high-cycle airflow applications. Built with heavy-gauge materials, the Fasco 30-435 provides the structural rigidity needed for long-term stability in diverse mounting orientations. Whether you are performing an emergency motor swap or a system upgrade, this direct replacement motor base ensures OEM-level tolerances and streamlined installation for the modern service technician.

• Precision Alignment: Engineered for a 3.0-inch shaft height and 4.35-inch cradle width to ensure exact motor positioning.
• Vibration Dampening: Designed for use with 2.5-inch resilient rings to isolate mechanical resonance and improve system acoustics.
• Heavy-Duty Construction: Robust cradle arms and base plates offer the durability required for demanding HVAC environments.
• Contractor Efficiency: Standardized mounting hole dimensions (1.69" x 2.25") allow for rapid installation without custom modifications.

What resilient rings are compatible with the Fasco 30-435?
This base is specifically designed to work with standard 2.5-inch diameter resilient mounting rings to achieve the correct 3.0-inch shaft center height.

Can this base be used with non-Fasco motors?
Yes, as long as the motor frame uses standard mounting rings and the distance between the ring grooves matches the 4.35-inch "B" dimension of this cradle.

Does this include the base clamps?
Standard configurations typically include the necessary base clamps to secure the motor rings to the cradle arms for a firm installation.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
