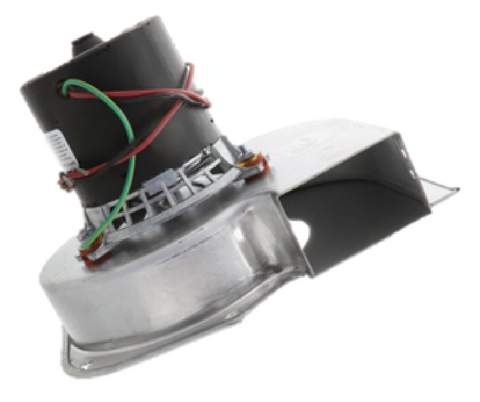

Fasco A150 Inducer Motor

The Fasco A150 Inducer Motor is a high-performance 208-230V furnace blower motor engineered for precision draft induction in residential and light commercial HVAC systems. This 1/35 HP shaded pole motor is a direct OEM replacement for Fasco 7021-10286, 7021-7833, 7021-8928, and Jakel 9447. Operating at 3480 RPM, it provides the necessary static pressure to ensure proper venting of flue gases through ducted inducer applications. Built with a 3.3-inch frame and equipped with high-durability ball bearings, the A150 is designed for continuous duty in high-temperature environments. The open enclosure design allows for optimal heat dissipation, while the 24-inch stripped leads simplify wiring during field installation. As a genuine Regal Rexnord product, this motor ensures compatibility with original furnace control boards and mounting brackets, maintaining the mechanical integrity of the combustion assembly without the need for specialized modifications.

Key Benefits for Contractors

• Broad Compatibility: Drop-in replacement for common Fasco A150 and Jakel models, reducing truck stock requirements.
• Enhanced Durability: Ball bearing construction offers superior longevity compared to sleeve bearing alternatives in vertical or horizontal mounting positions.
• Efficient Combustion: Maintains a consistent 3000-3480 RPM range to satisfy pressure switch closures and prevent nuisance furnace lockouts.
• Technical Reliability: Features Class B insulation rated for a 40°C ambient temperature, ensuring performance in demanding attic or crawlspace furnace locations.

Common Questions

What is the difference between the A150 and the 9447?
The A150 is the direct OEM replacement for the discontinued 9447 motor. It matches the electrical specifications and the 3.3-inch frame size exactly, ensuring a seamless mechanical fit.

Can this motor be used in 115V systems?
No. This is a 208-230V inducer motor. Installing this on a 115V circuit will result in insufficient torque and motor failure. Always verify the voltage at the control board before installation.

Does the A150 include the cooling fan blade?
This unit is the motor and lead assembly. It is designed to be used with the existing blower wheel and housing in ducted inducer applications.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
