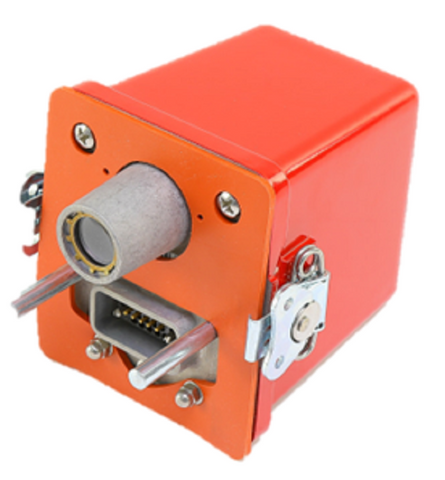

Fireye DE601-106 Scanner Electronics Assembly

The Fireye DE601-106 Scanner Electronics Assembly is a critical components for technicians maintaining Fireye C9501N series flame safeguard systems. This industrial electronics module serves as the primary processing unit for flame detection, converting signal inputs into reliable data for your burner management system. Engineered specifically for high-sensitivity UV flame scanners, the DE601-106 provides the field-proven reliability required in commercial combustion control environments. When a scanner fails to prove flame, swapping the electronics assembly in the C9501N integrated scanner housing is often the most direct path to restoring system uptime and ensuring code-compliant flame detection.

Key Benefits:

• Direct OEM Compatibility: Specifically designed for the Fireye DE601-106, ensuring exact electrical match for the C9501N Series.
• Enhanced Signal Processing: Provides precise discrimination between actual flame presence and background radiation, reducing nuisance shutdowns.
• Industrial Durability: Built to withstand the thermal and electrical demands of modern boiler rooms and industrial heating applications.
• Simplified Maintenance: Modular design allows for faster diagnostics and field replacement without replacing the entire scanner housing.

Common Questions:

How do I know if the DE601-106 electronics assembly is failing?
If your flame safeguard system reports intermittent flame signal loss or fails to detect a known pilot/main flame despite a clean lens, the internal electronics in the scanner assembly may be degraded. Confirm input voltage and signal strength at the control module before replacing the DE601-106.

Is this part compatible with non-UV scanners?
No, this electronics assembly is calibrated for the C9501N ultraviolet spectrum detection. Always verify your existing scanner model number to ensure technical alignment with Fireye OEM parts.

What is the proper installation procedure for this module?
Shut down all power to the burner management system. Open the scanner housing, disconnect the lead wires, and swap the Fireye DE601-106 module. Ensure all connections are secure and the housing is sealed to prevent moisture ingress, which can cause signal drift.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
