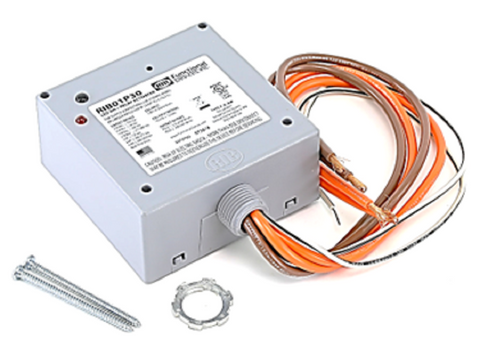

Functional Devices RIB RIB01P30 Relay

Standardize your control circuits with the Functional Devices RIB01P30 Relay, a robust 120V 30A DPST-N/O Power Control Relay engineered for demanding HVACR and building automation environments. This enclosed power relay features a 120 Vac coil and Double Pole Single Throw (DPST) contacts, providing reliable switching for heavy resistive, motor, and lighting loads. Contained within a NEMA 1 housing, this unit is plenum-rated and simplified for field installation with a pre-wired electrical nipple and 16-inch, 600V rated leads. Professional-grade gold flash contacts ensure low-resistance connectivity, while the integrated LED status indicator provides immediate visual confirmation of relay activation. Designed for high-duty cycles, this RIB01P30 relay is a staple for contractors managing air handlers, pump controls, and energy management systems requiring a 30-amp resistive rating at 300 Vac.

• High Load Capacity: Rated for 30 Amp resistive loads and up to 3 HP at 480–600 Vac, making it suitable for heavy-duty motor and heating applications.
• Simplified Installation: The pre-assembled "Relay In a Box" design reduces labor by eliminating the need for separate track mounting, sockets, and custom enclosures.
• Plenum Rated Durability: The NEMA 1 enclosure is accepted for use in environmental air spaces, offering versatile mounting options within ductwork or ceilings.
• Visual Diagnostics: An onboard LED provides a clear "on/off" status, facilitating faster troubleshooting during routine maintenance or system failures.
• Reliable Switching: Features a continuous duty coil and mechanical life expectancy of 10 million cycles for long-term operational stability.

• Can the RIB01P30 be used with LED drivers or electronic ballasts? No, this specific model is not rated for electronic loads or high-inrush electronic ballasts. It is optimized for resistive and inductive motor loads.
• What does DPST-N/O signify in this application? It stands for Double Pole Single Throw, Normally Open. This means both poles remain open until the 120V coil is energized, at which point both circuits close simultaneously.
• Is this relay suitable for outdoor mounting? The RIB01P30 is housed in a NEMA 1 enclosure, which is intended for indoor use. For outdoor applications, a NEMA 4 or 4X rated enclosure would be required.
