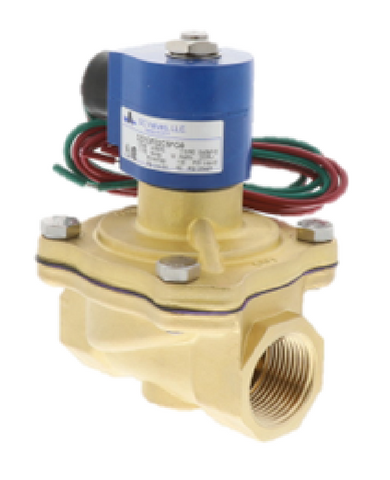

GC Valves S201GF02C5FG9 Solenoid Valve

The GC Valves S201GF02C5FG9 is a high-performance, 2-way piloted diaphragm solenoid valve designed for demanding HVACR and industrial fluid control applications. Featuring a 1" NPT connection and a full 1" orifice, this normally closed solenoid valve is engineered with a rugged brass body to ensure durability in high-cycle environments. The integration of EPR (Ethylene Propylene) seals makes this unit ideal for hot water and steam applications, supporting fluid temperatures up to 210°F while maintaining a leak-tight seal.

This valve utilizes a Class F coil rated for 120Vac (60Hz) or 110Vac (50Hz) operation, providing reliable electromagnetic actuation with a standard 1/2" conduit housing for secure electrical installation. Designed for zero differential pressure systems, the S201 series can operate effectively even when the supply and return pressures are nearly equal, making it a versatile choice for tank drains, closed-loop piping, and car wash systems. The S201GF02C5FG9 is built to handle aggressive media and neutral gases with precision, meeting the rigorous standards of professional contractors requiring field-proven reliability.

• Optimized Flow Rates: The full 1" orifice and piloted diaphragm design provide high Cv factors for maximum throughput in 1-inch piping systems.
• Broad Media Compatibility: EPR seal material offers superior resistance to hot water and varied chemical compositions compared to standard nitrile.
• Rugged Electrical Design: Class F insulation on the 120V solenoid coil ensures consistent performance under elevated ambient temperatures.
• Versatile Mounting: Zero differential capability allows for installation in systems with low or fluctuating pressure drops.

• What is the maximum fluid temperature for this valve? This configuration supports temperatures up to 210°F due to the high-grade EPR seals and brass construction.
• Can this valve be used for potable water? No, this specific model is restricted to non-potable water and industrial fluid applications.
• Does this valve require a minimum pressure to open? No, as a zero differential solenoid valve, it is designed to actuate without requiring a pressure drop across the orifice.
