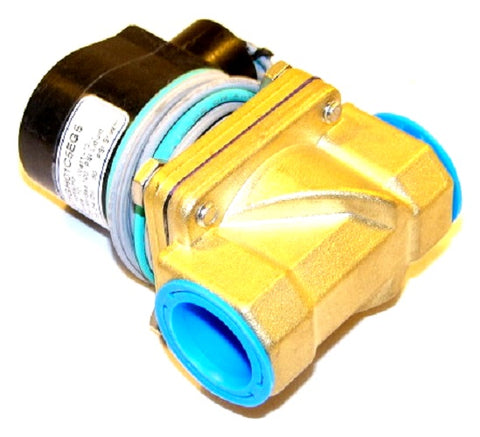

GC Valves S201GH01C5EG5 Valve

The GC Valves S201GH01C5EG5 is a high-performance, 2-way normally closed solenoid valve engineered for precision flow control in demanding HVACR and industrial fluid applications. Built with a heavy-duty brass body and a 3/4" NPT connection, this piloted diaphragm valve is designed for zero differential operation, allowing it to function reliably even when the pressure on both sides is equal. This specific model features a high-temperature Coil Class H rated for 24Vac, ensuring thermal stability during continuous duty cycles. The integration of EPR seal material (Ethylene Propylene) provides superior chemical compatibility, making it an ideal choice for managing hot water, steam, or aggressive media where standard Nitrile seals would fail. With a 3/4" orifice and a high Cv factor, this valve delivers the throughput necessary for commercial-grade piping systems.

• Zero Pressure Differential: Operates efficiently without requiring a minimum pressure drop, perfect for gravity-fed or low-pressure systems.
• High-Temperature Resilience: The Class H solenoid coil is rated for elevated ambient and fluid temperatures, preventing premature burnout in boiler or steam-line environments.
• Media Versatility: Equipped with EPR seals for excellent resistance to hot water, steam, and various industrial alkalis.
• Contractor-Ready Construction: Durable 3/4" NPT brass valve housing resists corrosion and ensures long-term mechanical integrity in the field.

• What is the maximum pressure rating for this valve? This S201 series valve typically handles up to 150 PSI for water and 50 PSI for steam applications, though specifics depend on the media and coil configuration.
• Can this valve be mounted in any orientation? Yes, the GC Valves S201GH01C5EG5 features a spring-loaded plunger that allows for mounting in any position, though upright is preferred for debris management.
• Is the coil replaceable without breaking the line? Correct. The S4 solenoid coil can be serviced or replaced without removing the brass body from the piping, saving significant labor time on-site.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
