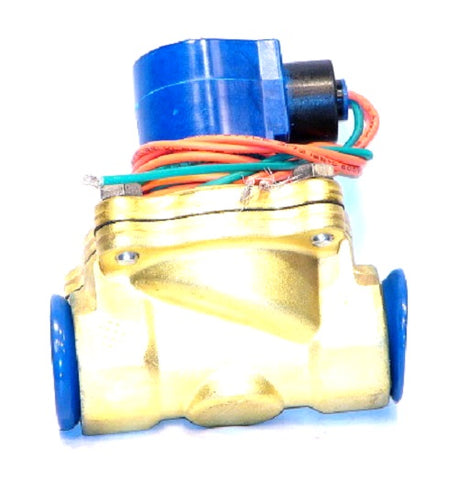

GC Valves S211GF04V5FG9 Solenoid Valve

The GC Valves S211GF04V5FG9 is a high-performance 1 inch NPT solenoid valve engineered for demanding industrial and HVACR fluid control applications. Constructed with a heavy-duty brass body, this normally closed solenoid valve features a full 1 inch orifice to maintain high flow rates with minimal pressure drop. The integration of Viton seal material ensures superior chemical resistance and thermal stability, making it ideal for media that would degrade standard Buna-N elastomers. Powered by a 240Vac Class F coil, the S211 series provides reliable actuation in high-ambient environments. This pilot-operated diaphragm valve is designed for precision in liquid and gas service, offering a robust solution for contractors requiring a 2-way universal mount valve that handles rigorous duty cycles without coil burnout or seat failure. Its standardized porting allows for seamless integration into existing piping manifolds.

• Superior Seal Integrity: The Viton (FKM) seals provide exceptional durability against corrosive fluids and high-temperature applications.
• High Flow Capacity: A full 1" orifice ensures maximum CV flow coefficients for efficient system performance.
• Reliable Electrical Performance: The Class F coil is rated for continuous duty, resisting moisture and heat degradation in tight mechanical spaces.
• Versatile Media Compatibility: Suitable for air, water, and compatible light oils, reducing the need to stock multiple valve variants.
• Rugged Construction: The forged brass body provides the structural rigidity necessary to withstand hydraulic shock and vibration.

What is the maximum operating pressure differential for the S211GF04V5FG9?
As a pilot-operated valve, it typically requires a minimum pressure differential (often 5 PSI) to function correctly, with maximum ratings depending on the specific media and coil configuration.

Can this valve be mounted in any orientation?
While universal, it is best practice to install the valve with the solenoid in the upright vertical position to prevent sediment buildup in the core tube.

Is the coil replaceable without breaking the fluid line?
Yes, the GC Valves S21 series allows for coil replacement or voltage changeouts without disconnecting the valve body from the NPT piping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
