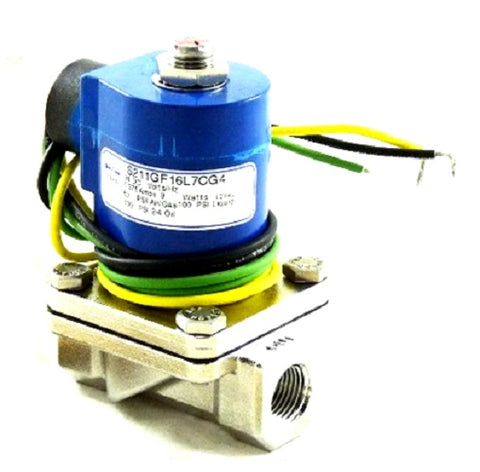

GC Valve S211GF16L7CG4 Valve

This GC Valve S211GF16L7CG4 is a direct-acting, 2-way normally closed solenoid valve engineered for precision media control in demanding HVACR and industrial fluid systems. Constructed with a 316 stainless steel body and a rugged 5/8" orifice, this unit provides maximum corrosion resistance and consistent flow rates. The integration of Viton (FKM) seal material ensures chemical compatibility with a wide range of fluids and high-temperature tolerance, making it a reliable solution for aggressive media. Operating on 24Vdc with a high-performance Class F coil, the valve is designed for continuous duty cycles without overheating. The 3/8" NPT ports allow for standard plumbing integration into existing manifolds. For technicians requiring a durable stainless steel solenoid valve that withstands rapid cycling, the S211GF16L7CG4 delivers the sealing integrity and mechanical longevity necessary for professional-grade installations and critical process control applications.

• 316 Stainless Steel Construction: Offers superior protection against pitting and corrosion in harsh environments compared to standard brass bodies.
• High-Temperature Viton Seals: Provides excellent chemical resistance and maintains seal elasticity across diverse thermal ranges.
• Continuous Duty Class F Coil: Engineered for high-temperature resilience and 24Vdc electrical stability during long-duration operation.
• Large 5/8" Orifice: Optimizes flow capacity (Cv) while maintaining tight shut-off capabilities in a normally closed configuration.
• Standard 3/8" NPT Porting: Ensures straightforward replacement and compatibility with common HVACR piping and fittings.

What is the maximum pressure rating for the S211GF16L7CG4 with 24Vdc power?
Pressure ratings depend on the specific media and differential, but this series typically handles high-pressure applications up to several hundred PSI due to the robust stainless steel housing.

Is this valve compatible with deionized water or mildly acidic solutions?
Yes, the 316 stainless steel and Viton seals make this normally closed valve ideal for deionized water, oils, and various chemicals that would degrade standard alloys.

Can the coil be serviced without removing the valve body from the line?
Yes, GC Valve designs allow for the Class F solenoid coil to be replaced or swapped without breaking the 3/8" NPT pipe connections, reducing downtime during maintenance.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
