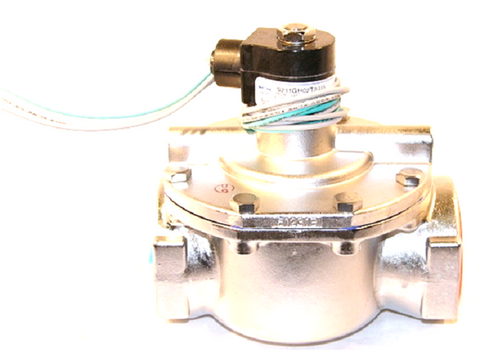

GC Valves S211GH02T2JJ5 Vavle

The GC Valves S211GH02T2JJ5 is a high-capacity 2-way normally closed solenoid valve engineered for demanding fluid control applications. Featuring a robust brass body and a 2" NPT connection, this valve utilizes a 1-1/2" orifice to manage high flow rates with minimal pressure drop. The internal Teflon/EPR seal material provides excellent chemical resistance and durability when handling steam, hot water, or compatible industrial fluids. Designed for continuous duty, the Class H coil is rated for 120Vac, offering superior thermal resistance in high-ambient environments. This pilot-operated solenoid valve ensures reliable shut-off performance and is a standard replacement for industrial boilers and process heating systems. Contractors prefer the S211 series for its zero differential pressure capability and field-serviceable design, allowing for straightforward maintenance without pulling the valve body from the line. Ensure your system piping aligns with the flow direction indicators to maintain optimal Cv values and prevent water hammer.

• 2" NPT Brass Construction: Provides industrial-grade durability and corrosion resistance for high-flow piping systems.
• High-Temperature Class H Coil: Rated for 120V AC operation, ensuring reliable performance in elevated thermal conditions.
• Teflon/EPR Seals: Optimized for longevity and leak-proof performance across a wide range of fluid temperatures.
• Normally Closed Logic: Ensures the valve remains in the shut position during power loss for system safety.
• 1-1/2" Flow Orifice: Engineered to maximize flow capacity while maintaining precise control over the media.

Common Questions

What is the maximum operating pressure for this GC Valve?
The S211 series typically handles a maximum operating pressure differential (MOPD) specific to the media, often up to 150 PSI for water or air, though performance varies based on the specific 120Vac coil configuration.

Can this solenoid valve be mounted in any orientation?
For optimal seat life and to prevent debris accumulation in the pilot orifice, it is best practice to install the valve with the solenoid coil in the upright vertical position.

Is the S211GH02T2JJ5 suitable for steam applications?
Yes, the combination of Teflon seals and a Class H coil makes this unit compatible with low-to-medium pressure steam cycles commonly found in HVACR and sterilization equipment.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
