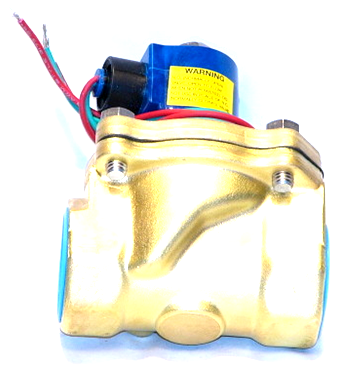

GC Valves S212GF02N5HJ2 Valve

The GC Valves S212GF02N5HJ2 is a robust 2-way piloted diaphragm solenoid valve engineered for professional fluid control in demanding industrial and commercial environments. Featuring a 1 1/2" NPT connection and a normally open operational mode, this valve ensures continuous flow until the 120Vac coil is energized. The heavy-duty brass body and high-performance Nitrile seal material make it ideal for handling compressed air, water, and light oils at temperatures up to 180°F. Equipped with a 1 1/4" orifice, it provides high flow capacity with minimal pressure drop, essential for maintaining system efficiency. The Class F coil is housed in a NEMA 4X enclosure, offering superior protection against moisture and corrosion. Designed for reliability in water treatment, car wash systems, and HVACR applications, this S21 series solenoid valve handles maximum pressures of 200 PSI for air and 140 PSI for water, ensuring long-term stability in the field.

• Optimized Flow: The 1 1/4" orifice ensures high Cv ratings for maximum throughput in large-scale piping systems.
• Durable Construction: Brass body provides excellent corrosion resistance and mechanical strength for industrial plumbing.
• Reliable Sealing: Buna-N (Nitrile) seals offer a bubble-tight shutoff and compatibility with a wide range of neutral fluids.
• Weatherproof Performance: NEMA 4X housing protects the electrical components in wash-down or outdoor installation sites.
• Easy Integration: Standard 1 1/2" NPT threads allow for direct replacement in existing fluid control manifolds.

• Can this valve be used for steam applications? No, for high-temperature steam, a Class H coil and EPR or Viton seals are required; the standard Nitrile seals are rated for up to 180°F.
• What is the minimum pressure differential required? This piloted diaphragm valve requires a minimum 5 PSI pressure differential to actuate the main orifice effectively.
• Is the coil compatible with outdoor use? Yes, the NEMA 4X waterproof conduit housing is specifically designed to withstand wet and corrosive environments.
