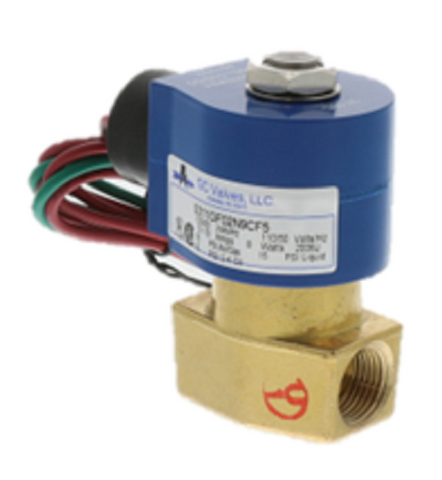

GC Valve S311GF02N9CF5 Solenoid Valve

The GC Valves S311GF02N9CF5 is a high-performance, 2-way direct-acting solenoid valve engineered for precise fluid and gas control in demanding industrial and HVACR environments. This normally closed solenoid valve features a robust forged brass body and a 3/8" NPT port, making it a reliable choice for managing the flow of air, neutral gases, water, and light oils. With a 3/8" orifice and a Class F coil rated for 120VAC, this unit is designed for continuous duty cycles and consistent performance in applications such as boilers, chillers, and air handling units.

Utilizing a nitrile seal material (Buna-N), the S311GF02N9CF5 provides an excellent seal for media temperatures ranging from 32°F to 125°F. This specific model in the GC Valves S31 series is built to operate efficiently with a pressure range of 0 to 15 PSI, ensuring zero-differential operation where gravity feed or low-pressure systems are present. Contractors rely on this 120V solenoid valve for its fast response times and durable construction, which minimizes system downtime and maintains optimum pressure regulation across commercial piping layouts.

• Zero Differential Operation: Operates effectively from 0 to 15 PSI, making it ideal for low-pressure gas and liquid applications.
• Industrial-Grade Durability: The forged brass body and stainless steel internal components resist wear in high-cycle environments.
• Versatile Media Compatibility: Equipped with nitrile seals to handle air, inert gases, water, and light oils without degradation.
• Reliable Electrical Performance: Features a 120VAC Class F coil and NEMA 4X rated housing for moisture and corrosion resistance.
• Direct-Acting Design: Ensures a high-speed response for precise flow regulation in critical HVACR control loops.

Is this valve suitable for potable water systems?
No, this specific model is designed for industrial and commercial non-potable applications and does not carry low-lead certification for drinking water.

Can the S311GF02N9CF5 be mounted in any orientation?
Yes, this direct-acting valve is designed to be mounted in any position, providing flexibility for tight mechanical room installations.

What is the maximum operating pressure for this unit?
This valve is optimized for low-pressure systems with a maximum operating pressure differential of 15 PSI for air, gas, and oil.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
