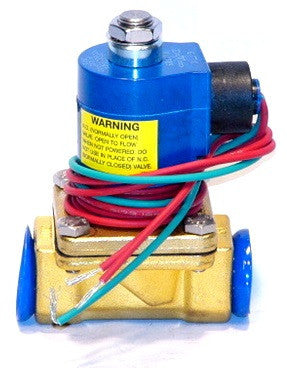

GC Valves S202GF02N5EG5 Solenoid Valve

The GC Valves S202GF02N5EG5 Solenoid Valve is a high-performance 2-way piloted diaphragm valve designed for zero differential applications, making it essential for HVACR industrial flow control. Featuring a robust brass body and a 3/4" orifice, this normally open solenoid valve provides reliable fluid management for water, air, and neutral gases. The 3/4 inch NPT connection ensures compatibility with standard piping, while the 120Vac Class F coil is engineered for continuous duty in demanding environments. This 120V HVAC solenoid valve operates effectively across a pressure range of 0 to 200 PSI, offering veterans in the field a dependable solution for system-critical fluid regulation. With its nitrile seal material, the S202GF02N5EG5 provides long-lasting durability and consistent bubble-tight shutoff when energized, minimizing maintenance cycles in commercial and industrial mechanical systems.

Key Benefits

• Zero Differential Operation: Specifically designed to function reliably without requiring a minimum pressure drop, ideal for low-pressure or gravity-feed systems.
• Enhanced Thermal Resistance: Equipped with a Class F coil rated for higher ambient temperatures, preventing premature coil burnout during heavy-duty cycles.
• Durable Brass Construction: The heavy-duty brass body offers superior corrosion resistance and structural integrity for long-term field use.
• Normally Open Configuration: Ensures the flow path remains clear during power loss, a critical safety feature for specific system cooling or drainage requirements.

Common Questions

What media is compatible with the nitrile seals in this valve?
Nitrile (Buna-N) seals are optimized for water, compressed air, and light oils. They provide excellent resistance to petroleum-based fluids but should not be used with high-temperature steam or aggressive chemicals.

Can this solenoid valve be mounted in a vertical orientation?
Yes, the S202 series is multi-poised and can be mounted in any position. However, for optimal service life and to prevent sediment buildup, mounting the coil upright is recommended.

What is the maximum pressure rating for the S202GF02N5EG5?
This specific model is rated for a maximum operating pressure of 200 PSI, providing a wide safety margin for most commercial HVAC and plumbing applications.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
