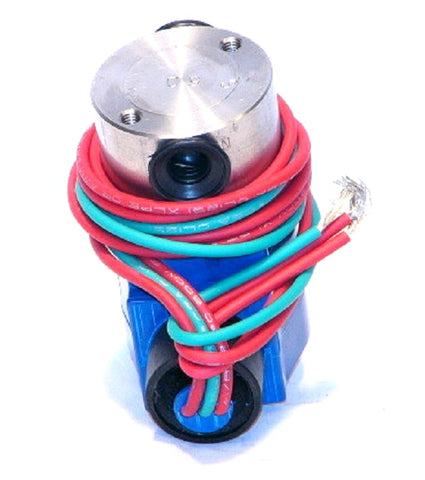

GC Valves S301GF02V3BC9 Solenoid Valve

The GC Valves S301GF02V3BC9 is a high-performance 2-way normally closed solenoid valve engineered for precision fluid and gas control in demanding industrial environments. Featuring a 303 stainless steel body and a 1/4" NPT connection, this direct-acting solenoid valve is ideal for handling air, water, and light oils at temperatures up to 230°F. The 3/32" orifice provides a technical balance, yielding a 0.21 Cv coefficient for accurate flow modulation. To ensure chemical compatibility and long-term reliability in specialized HVACR and process applications, this unit utilizes Viton (FKM) seal material, known for its superior resistance to thermal degradation and aggressive media. Driven by a 120Vac Class F coil with an encapsulated waterproof conduit (NEMA 4X), the S301GF02V3BC9 offers a maximum operating pressure differential of 400 psi for AC systems. This robust stainless steel solenoid valve is designed for multi-poise mounting, allowing for flexible integration into existing manifolds or tight mechanical spaces without compromising cycle life.

• Chemical Resilience: Integrated Viton seals provide exceptional durability when exposed to light oils and high-temperature fluids.
• Corrosion Resistance: The 303 stainless steel body ensures structural integrity in washdown environments or corrosive atmospheres.
• Zero Differential Operation: As a direct-acting valve, it functions reliably even at 0 psi, making it suitable for gravity-fed or low-pressure systems.
• Environmental Protection: Features a Class F coil rated for waterproof conduit connections, meeting NEMA 4X standards for moisture and dust exclusion.

What is the maximum pressure rating for this valve?
The GC Valves S301GF02V3BC9 is rated for a maximum operating pressure differential of 400 psi when used with 120Vac power for air, water, or light oil applications.

Can this valve be mounted in any orientation?
Yes, this 1/4" NPT solenoid valve is multi-poised and can be mounted in any position; however, for optimal performance and to prevent sediment buildup in the plunger tube, vertical upright mounting is often preferred.

Is this valve compatible with vacuum service?
While primary specifications focus on positive pressure, the direct-acting design of the S30 series allows for operation in certain vacuum applications. Consult technical datasheets to confirm specific leak rate requirements.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
