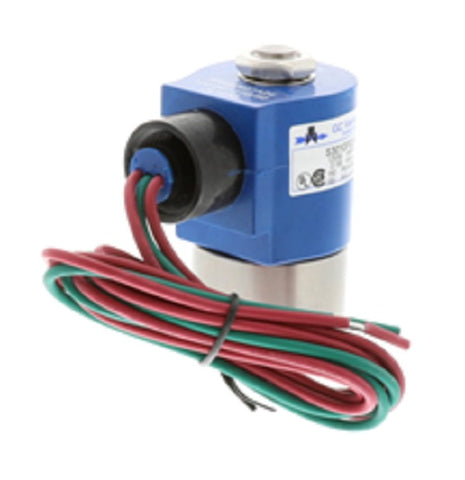

GC Valves S301GF02V3BD7 Solenoid Valve

The GC Valves S301GF02V3BD7 Solenoid Valve is a 2-way normally closed, direct-acting solenoid valve engineered for critical fluid control in industrial and HVACR environments. Built with a 303 stainless steel body and a 1/4" NPT connection, this S30 series valve handles aggressive media, steam, and light oils where standard brass components fail. The 5/32" orifice provides precise flow regulation, while the Viton (FKM) seal material ensures chemical compatibility and high-temperature resilience. Operating on a 120V AC power supply with a robust Class F coil, the unit is housed in a NEMA 4X enclosure, making it suitable for washdown environments and outdoor installations. Contractors utilizing this stainless steel solenoid valve benefit from its ability to actuate without a minimum pressure differential, ensuring reliable performance in gravity-fed or low-pressure vacuum systems. This GC Valves S301 model is UL and CSA approved, meeting rigorous safety standards for commercial boiler, sterilization, and chemical processing applications.

Key Benefits:

• Corrosion Resistance: The 303 stainless steel construction prevents oxidation when exposed to moisture or corrosive gases.
• High-Temperature Reliability: Integrated Viton seals and Class F insulation allow for stable operation in demanding thermal cycles.
• Direct-Acting Actuation: Provides immediate response times and functions reliably regardless of line pressure.
• Environmental Protection: The NEMA 4X housing protects the 120Vac coil from dust, water, and ice formation.
• Versatile Media Handling: Compatible with air, neutral gases, water, and slightly aggressive fluids.

Common Questions:

Can this valve be used for steam applications?
Yes, the combination of a 303 stainless steel body and FKM (Viton) seals makes the S301GF02V3BD7 suitable for steam and high-temperature fluid control.

Does this unit require a minimum pressure to open?
No, as a direct-acting valve, it does not require a pressure differential to operate, making it ideal for low-pressure systems.

What are the electrical connection specifications?
The valve features a 1/2" conduit connection and is designed for 110V/120V AC 50/60Hz circuits.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
