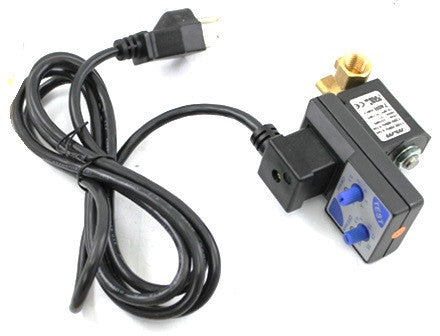

Hankison 3044463 Drain

The Hankison 3044463 ADV-1611 Drain is a heavy-duty timed electric condensate drain designed for high-performance moisture management in industrial compressed air systems. Built with a rugged brass valve body and a reliable solenoid operator, this 120V-AC unit ensures the consistent removal of water and oil emulsions, preventing downstream contamination and pipe corrosion. Featuring 1/4 inch NPT female connections, it integrates seamlessly into filter housings, separators, and receiver tanks. The ADV-1611 automatic drain valve is engineered for a maximum operating pressure of 250 PSI, making it a standard choice for contractors maintaining Hankison HF series filtration and refrigerated air dryers. By utilizing a solid-state adjustable timer, technicians can precisely control the discharge frequency and duration, optimizing the balance between thorough condensate evacuation and compressed air conservation. For professionals seeking an OEM-quality replacement drain, the 3044463 provides the durability required for 24/7 industrial service environments without the complexity of float-based alternatives.

• Precise Condensate Control: Features an adjustable solid-state timer to customize drain cycles based on seasonal humidity and system load.
• High Pressure Capability: Rated for up to 250 PSI, providing reliable performance in high-demand pneumatic applications.
• Robust Construction: The brass body and solenoid-actuated design offer significantly higher durability than plastic aftermarket alternatives.
• Universal 1/4" NPT Ports: Ensures straightforward installation and compatibility with standard SPX Flow-Hankison air treatment components.
• Debris Management: Designed to handle heavy oil/water emulsions without clogging, maintaining system efficiency.

What is the standard voltage for the Hankison 3044463?
This specific model operates on a standard 120V-AC single-phase electrical supply, making it compatible with most industrial control circuits.

Can the ADV-1611 be used on a 200 PSI system?
Yes, this timed condensate drain is rated for a maximum pressure of 250 PSI, allowing it to easily handle 200 PSI line pressure with an adequate safety margin.

Is this a demand-style or timed drain?
The Hankison 3044463 is a timed electric drain, utilizing a solenoid valve and an electronic timer to discharge condensate at a set interval regardless of fluid level.
