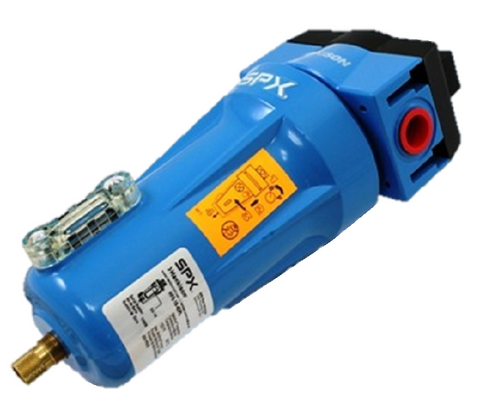

Hankison HF5-16-4-DPL Filter

1/2" npt, 35 scfm flow at 100 PSI, High Efficiency Oil Removal Filter (Element Grade 5) with Internal Automatic Drain, Differential Pressure Slide Indicator, and Liquid Level Indicator

Hankison HF5-16-4-DPL Oil Removal Filter – 1/2" NPT, 35 SCFM, Grade 5 Coalescing Filter with Auto Drain & Indicators

Achieve superior compressed air quality with the Hankison HF5-16-4-DPL High Efficiency Oil Removal Filter. Designed for critical applications, this coalescing filter effectively removes oil aerosols and water contaminants down to 0.01 micron, ensuring clean, dry air for sensitive pneumatic tools and systems.

Key Features:

• Connection Size: 1/2" NPT

• Flow Rate: 35 SCFM at 100 PSI

• Filter Grade: Grade 5 – High Efficiency Oil Removal

• Micron Rating: 0.01 µm for ultra-fine contaminant removal

• Automatic Internal Drain: For low-maintenance operation

• Differential Pressure Slide Indicator: Easily monitor filter condition

• Liquid Level Indicator: Visual cue for service readiness

• Durable Build: Built to withstand up to 250 PSI max working pressure

• Compact Design: Height: 11.05", Width: 4.13"

Specifications:

• Model: HF5-16-4-DPL

• Application: Coalescer

• Drain Type: Auto

• Thread Type: 1/2" NPT (inlet/outlet)

• Filter Media: Coalescing

• Country of Origin: United States

• UNSPSC Code: 40161500

Ideal For:

• Industrial compressed air systems

• Pneumatic equipment requiring high-purity air

• Applications sensitive to oil, water, and fine particulates

Trust the Hankison HF5-16-4-DPL for reliable oil and water separation in your compressed air system. Compact, efficient, and built to last—order now for clean, dry air and peak system performance.
