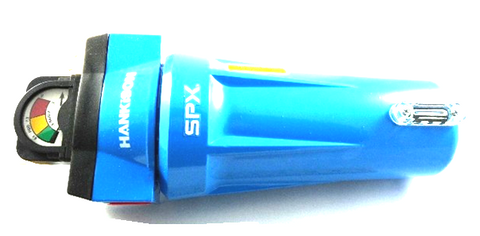

Hankison HF7-24-8-DGL Compressed Air Filter

In industrial compressed air systems, the Hankison HF7-24-8-DGL stands as a critical line of defense for pneumatic machinery and sensitive instrumentation. This 1-inch NPT general purpose air line filter is engineered to manage a capacity of 110 CFM, effectively removing solid particles down to 1 micron and reducing bulk liquids. Built for rigorous contractor use, the housing features a piston-type element-to-housing seal that prevents unfiltered air from bypassing the filtration media. The E7-24 replacement element utilizes matrix-blended fiber media to maximize surface area, ensuring a low pressure drop while maintaining high capture rates. This specific configuration includes the DGL internal automatic drain, a differential pressure gauge, and a liquid level indicator, allowing technicians to monitor performance and manage condensate without manual intervention. The stainless steel inner and outer cores provide the structural integrity required to withstand high-flow turbulence in professional HVACR and compressed air environments.

• Efficient Filtration: Captures solid contaminants down to 1 micron, protecting downstream components from abrasive wear and pipe scale.
• Integrated Monitoring: Pre-installed differential pressure gauge and liquid level indicator facilitate rapid diagnostic checks during routine maintenance.
• Automatic Condensate Management: The internal automatic drain ensures consistent liquid removal without the risk of manual oversight or system flooding.
• Superior Flow Dynamics: Large open area within the coalescing filter media minimizes resistance, reducing energy costs and optimizing tool performance.
• Rugged Construction: Corrosion-resistant cores and a coated, closed-cell foam sleeve resist chemical attack from synthetic lubricants and acidic condensates.

What is the maximum operating pressure for the HF7-24-8-DGL?
This unit is designed for standard industrial applications with a maximum housing pressure of 250 PSIG, allowing it to integrate seamlessly into most 100-175 PSI plant air systems.

Does this filter remove oil vapor or odors?
The Grade 7 element is a general purpose filter designed for liquid water and particulate removal. For oil vapor or hydrocarbon odor removal, this unit should be paired in series with a Grade 1 activated carbon filter.

How often should the E7-24 filter element be replaced?
Element life depends on the level of contamination in your system, but replacement is required when the differential pressure gauge identifies a significant drop in pressure or at least annually to maintain air quality standards.
