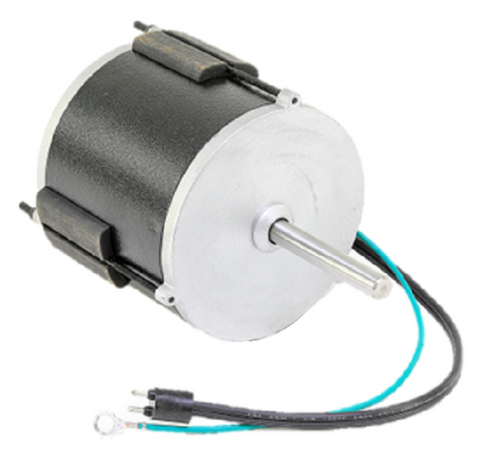

Heatcraft Refrigeration 25317601S Motor

The Heatcraft Refrigeration 25317601S Motor is a high-efficiency 1/4 HP ECM motor specifically engineered for commercial refrigeration duty. This Interlink OEM replacement motor operates at 120V and maintains a consistent 1145 RPM, providing the precise torque and airflow requirements necessary for walk-in coolers and evaporative condensers. Designed with single-phase, 60 Hz electrical characteristics and a 2.77 Amp draw, it utilizes electronically commutated motor technology to significantly reduce energy consumption compared to traditional shaded pole or PSC motors.

Built for the rigors of mechanical rooms and walk-in environments, this unit features a 1/2 inch shaft diameter and Clockwise (CW) rotation. The Class B insulation rating ensures thermal protection during continuous operation in high-demand refrigeration cycles. As a direct-drop replacement for many Heatcraft and Bohn evaporator units, it maintains the precise physical dimensions—including a 10-inch length and 3-inch profile—required for standard mounting brackets without field modification.

• Direct OEM Compatibility: Eliminates guesswork when sourcing a replacement for Heatcraft 25317601S and Interlink equipped systems.
• High-Efficiency ECM Technology: Lowers operational costs and reduces heat output compared to standard induction motors.
• Standardized 1/2" Shaft: Facilitates seamless integration with existing fan blades and hub assemblies.
• Rugged Construction: Steel and copper material composition optimized for low-temperature commercial environments.

Is this motor compatible with 208-230V systems?
No, this specific model is a dedicated 120V refrigeration motor. Verify your supply voltage at the lead wires before installation.

Can the rotation be reversed in the field?
This motor is factory-set for Clockwise (CW) rotation. Technicians should verify fan blade pitch to ensure proper airflow direction prior to mounting.

Does this motor require a run capacitor?
As an ECM motor, the commutation is handled by internal electronics, eliminating the need for an external run capacitor and simplifying the wiring process.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
