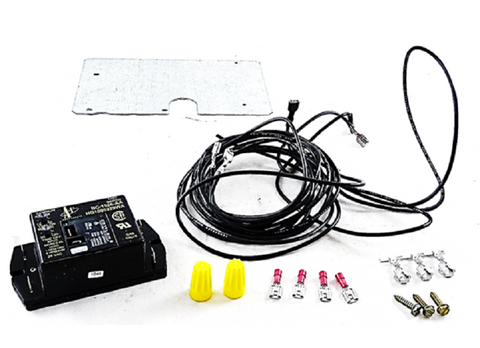

Heil Quaker ICP 1005263 Control

When you're troubleshooting a call where the Heil furnace blower motor won't engage or is staying energized way past the cycle, the Heil Quaker ICP 1005263 Control is often the primary suspect. This genuine OEM fan timer control is specifically engineered to manage furnace blower sequences and timing delays across International Comfort Products (ICP) equipment, including Heil, Tempstar, and Arcoaire systems. It operates on a standard 24V AC control voltage, acting as the logic center for the G terminal and ensuring the blower provides proper airflow for heat dissipation or cooling efficiency. Its compact, electronic control board architecture allows for a clean drop-in replacement in existing air handlers and furnaces, maintaining the original timing parameters required for safe heat exchanger cooling. As a technician, you know that keeping the HVAC blower delay consistent is vital for preventing limit switch tripping and maximizing energy efficiency. Whether you're dealing with a residential air handler or a commercial package unit, this ICP furnace control board provides the precise fan timing logic needed to restore reliable system communication and performance without the headache of universal board configuration.

• OEM Compatibility: Precision-fit for Heil Quaker, Tempstar, and Arcoaire systems, ensuring a direct HVAC part replacement without rewiring.
• Optimized Fan Sequences: Manages fan-off delays to improve 2-5% energy efficiency by utilizing residual heat and cooling from the coil.
• Robust Solid-State Design: Built-in electronic diagnostics help technicians quickly identify power issues at the R, C, and G terminals.
• Standardized Voltage: Operates on common 24V AC circuitry, making it compatible with most standard furnace thermostats and air handlers.

What are the symptoms of a bad fan timer control?
If the furnace blower runs all the time or won't turn on during a call for heat or cooling (despite 24V reaching the board), the relay on the 1005263 control board likely has burnt contacts or a logic failure.

Does this board replace universal fan delay controls?
While universal boards exist, this Heil Quaker OEM part is the exact 1005263 replacement, ensuring original factory blower timing and mounting hole alignment for a faster service call.

How do I test the 1005263 control for a failure?
Check for 24V between R and C. Then, jump R to G; if the board receives the signal but fails to close the high-voltage blower circuit after the fan delay, the board should be replaced.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
