Heil Quaker ICP 1160192 Timer Board

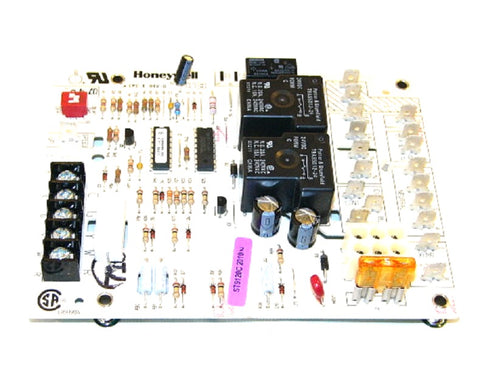

The Heil Quaker ICP 1160192 Fan Timer Board serves as a direct replacement component for International Comfort Products (ICP) furnace systems, engineered to regulate the timing and operational sequence of the blower motor. This furnace control board operates on a 120V primary voltage with a secondary 24VAC control circuit, facilitating seamless communication between the thermostat and the air handler. Designed for integration with Heil Quaker, Tempstar, and Comfortmaker natural gas furnaces, the ICP 1160192 handles a maximum blower load of 15FLA and 30LRA, alongside an inducer load of 3FLA. The board features dedicated terminals for Common, Cooling, Fan, and Heating, as well as accessory leads for a humidifier and electronic air cleaner. Technicians can rely on this OEM blower control board for precise fan delay-off timings, optimizing heat exchanger cooling and promoting system-wide efficiency. Its compact 4-1/2" x 5-3/4" footprint ensures a direct fit in HVAC replacement parts inventories, effectively replacing legacy part number 1150489.

• Universal Sub-Brand Compatibility: Fits an extensive range of ICP brands including Arcoaire, KeepRite, Day & Night, and Snyder General.
• Integrated Accessory Controls: Features factory-labeled terminals for easy connection of 24V humidifiers and 120V electronic air cleaners.
• High Current Thresholds: Robust electrical design supports up to 15FLA for high-efficiency blower motors.
• Direct OEM Specification: Maintains original equipment operational sequences without the need for field modifications or bracket fabrication.

Is the ICP 1160192 compatible with older 1150489 boards?
Yes, the 1160192 is the designated technical replacement for the legacy 1150489 series control boards used in many Heil Quaker furnaces.

Does this board control both the inducer and the blower motor?
This timer board manages the timing intervals for the blower fan and provides circuitry support for the inducer motor during the ignition cycle.

What are the voltage requirements for this fan timer?
The unit requires a 120VAC line input and a 24VAC transformer output for the control circuit logic.
