Hoffman Controls 906-13AW Wall Stat

The Hoffman Controls 906-13AW Wall Stat is a low voltage Class II electronic thermostat engineered for precise temperature management in commercial HVAC systems. This miniature wall thermostat features a 10K Ohm thermistor output specifically calibrated for a 65?F to 85?F temperature range, ensuring a responsive 19-second time constant for rapid environmental adjustments. The 906-13AW is designed for seamless integration with Hoffman Controls 744, 901-D, 902, and 903 Series controllers, providing a proportional signal to the control logic for stabilized load balancing.

Constructed with a self-extinguishing white ABS ribbed cover, the unit offers a tamperproof case that is both ventilated and non-conductive. Contractors benefit from high installation flexibility, as the 906-13AW includes all necessary hardware for both direct wall mounting and electrical box cover application. The inclusion of color-coded UL1007 flying leads simplifies field wiring, while the option for a visible or hidden setpoint range allows technicians to tailor the interface to specific facility requirements.

Key Benefits

• High-precision 10K Ohm thermistor ensures accurate proportional control signal output within the 65-85?F range.
• Compact miniature size allows for unobtrusive placement in professional and residential environments.
• Durable ABS housing features a self-locking tamperproof design to prevent unauthorized setpoint adjustments.
• Versatile mounting options include hardware for direct-to-wall or standard electrical box installation.
• Fast-acting response with a 19-second time constant minimizes temperature swings and enhances equipment efficiency.

Common Questions

What controllers are compatible with the 906-13AW?
This HVAC part is specifically optimized for use with Hoffman Controls 744 Series, as well as 901-D, 902, and 903 Series logic controllers that accept a 10K Ohm input signal.

Can this thermostat be mounted on a standard electrical box?

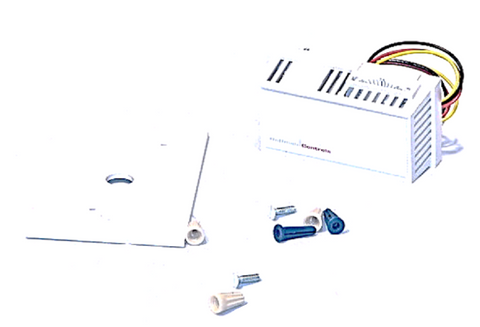

Yes, the 906-13AW is a wall-mounted thermostat that ships with a mounting plate and hardware suitable for both vertical electrical boxes and direct surface mounting.

What is the output signal type for this model?
The 906-13AW provides a 10K Ohm resistive output at 77?F. For applications requiring a 2-10V DC or 4-20 mA signal, alternative models in the 906-VmA series should be specified.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
