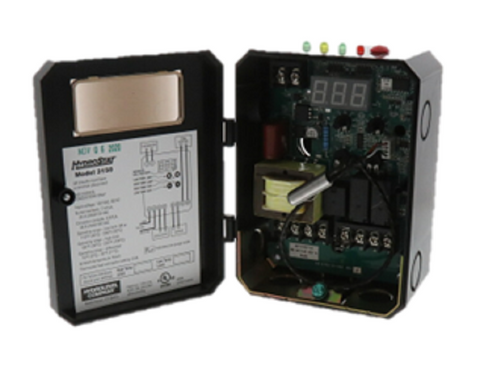

Hydrolevel 3150 Hydrostat

The Hydrolevel 3150 Hydrostat is an industry-standard, 120Vac universal dual-function oil boiler control designed to integrate temperature limit control and low water cut-off (LWCO) into a single microprocessor-based unit. Engineered for versatility, the 3150—which is numerically identical to the 48-3150—serves as a direct replacement for various Honeywell Aquastat models, including the L7224U, L8124, and L7248 series. It is specifically optimized for cold start oil boilers and systems equipped with a tankless domestic hot water coil. Utilizing thermal pre-purge technology, this control maximizes fuel efficiency by circulating latent heat from the boiler to the heating zone before authorizing the burner to fire. For technicians managing hydronic heating systems, the 3150 provides adjustable high limits (100-200°F), low limits (110-220°F), and differentials (10-30°F). While it installs on existing standard immersion wells for temperature regulation, the low water cut-off protection is activated only when paired with a Hydrolevel Electro-Well.

• Universal Compatibility: Streamlines the replacement of common triple-action and cold-start boiler temperature controllers using standard wiring designations.
• Energy Efficiency: The thermal pre-purge feature reduces fuel consumption by prioritizing existing boiler heat before ignition.
• On-Board Diagnostics: Equipped with four external diagnostic LEDs to provide real-time status for temperature limits and LWCO functionality.
• Flexible Configuration: Features easy-to-use dials for adjustable high and low limits and can be toggled between automatic or manual reset modes to meet specific code requirements.
• Dual-Function Safety: Combines reliable high-limit protection with optional low water safety when integrated with an Electro-Well.

How do I activate the low water cut-off (LWCO) on a 3150 Hydrostat?
The LWCO feature is automatically activated only when the unit is installed on a specific Hydrolevel Electro-Well. When mounted on a standard immersion well, the "LWCO Active" LED will remain off, and the device will function as a temperature limit control only.

What Honeywell Aquastats does the HydroStat 3150 replace?
The 3150 is a universal replacement for common 120V models such as the L7224U, L7224A, L7224C, L8148A, and L8124A, making it a staple for contractor service trucks.

Can this control be used on a gas-fired boiler?
The Hydrolevel 3150 is specifically designed for oil-fired hot water boilers. For gas applications, a compatible gas-specific HydroStat model should be selected to ensure proper safety and signaling compatibility.
