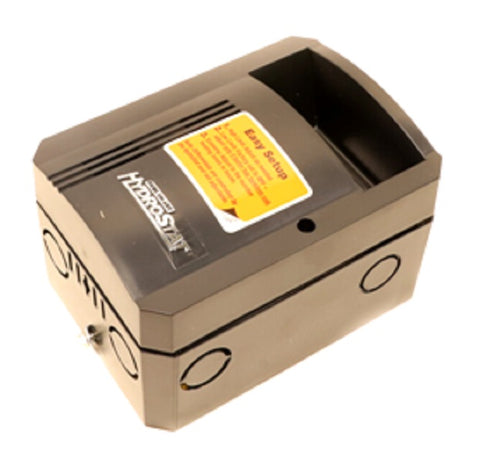

Hydrolevel 3250 Hydrostat

The Hydrolevel 3250 Hydrostat is an advanced, triple-function fuel-smart control designed specifically for oil-fired boilers. As a veterans' choice for universal replacement, it integrates temperature limit control, low water cut-off (LWCO), and boiler reset functionality into a single 120V unit. Its Thermal Targeting technology uses a microprocessor to monitor heat demand, adjusting the boiler target temperature to maximize fuel efficiency without requiring an outdoor sensor, though it is outdoor reset ready with the addition of a Hydrolevel OS-100 kit. For contractors, the unit is a drop-in replacement for standard triple-action aquastats and supports both cold start and tankless coil operations. When paired with a Hydrolevel Electro-Well, it provides critical low water protection to prevent dry firing. The adjustable high limit (100–220°F) and low limit (110–200°F) dials, combined with an automatic differential, ensure precise thermal management and domestic hot water priority for indirect heaters.

Key Benefits

• Universal Compatibility: Designed to replace common Honeywell L7224U and other legacy triple-action aquastats on existing immersion wells.
• Fuel Optimization: Employs Thermal Targeting and Thermal Pre-Purge to reduce fuel consumption by up to 15% through intelligent temperature scaling.
• Advanced Diagnostics: Features 6 external LED status lights and a dynamic temperature display for rapid troubleshooting of burner and circulator calls.
• System Protection: Includes condensing protection by holding the circulator off until the boiler reaches 125°F, preventing thermal shock and flue gas condensation.
• Dual Reset Modes: Easily toggle between automatic reset and manual reset to meet CSD-1 code requirements for commercial applications.

Common Questions

Can the Hydrolevel 3250 be used on a cold start boiler?
Yes, for cold start operation, simply turn the LO TEMP dial to the 'OFF' position. The control will then only fire the burner on a call for heat from the thermostat.

Does this unit provide low water cut-off (LWCO) protection out of the box?
The LWCO function requires the Hydrolevel Electro-Well. If installed on a standard immersion well, the control will provide temperature and reset functions but will not detect low water conditions.

How do I activate the outdoor reset feature?
To enable outdoor reset, you must install the optional OS-100 Outdoor Sensor Kit. Once plugged in, the control automatically overrides Thermal Targeting to use the outdoor temperature curve.
