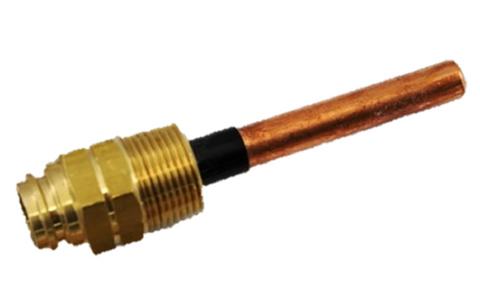

Hydrolevel EW201 Electro-Well

As a seasoned technician, you know that a Hydrostat controller is only as good as its interface with the boiler water. The Hydrolevel EW201 Electro-Well (Part Number 48-201) is the specialized 3/4" NPT immersion well required to unlock the Low Water Cut-Off (LWCO) functionality on Fuel Smart Hydrostat models. Unlike standard brass wells that only transfer temperature, this Electro-Well features a patented design with an integrated electrical insulator that allows the Hydrostat sensor to detect the presence of water through conduction. If you are troubleshooting a system where the "LWCO Active" LED won't light up, it is likely because the control is sitting in a standard well rather than this specific Hydrolevel 48-201. This unit is the direct replacement for 240007709, making it the go-to for retrofitting older Weil-McLain, Burnham, or Peerless installations where a standard nut Electro-Well is specified. When installing, remember to use pipe sealing compound rather than Teflon tape to ensure a solid ground path, and never use heat-transfer grease, as it will insulate the probe and cause false low-water signals.

Key Benefits

• Automatic LWCO Activation: Immediately enables low water cut-off protection once the sensor is fully inserted, eliminating the need for a separate probe-type LWCO.
• Standard 3/4" NPT Threading: Fits the boiler manufacturer's tapping for temperature limit controls on most residential and commercial hydronic systems.
• OEM Compatibility: Serves as the precise cross-reference for 240007709, ensuring a perfect fit for legacy boiler controls.
• Reliable Sensor Path: Designed specifically for use without heat-conducting grease, preventing the gummy buildup that often causes nuisance boiler shutdowns.
• Durable Construction: Built with a standard nut configuration to withstand high-pressure hydronic environments while maintaining electrical continuity.

Common Questions

Why is my "LWCO Active" light not turning on?
The Hydrostat control only activates its Low Water Cut-Off circuitry when it detects the unique electrical signature of an Electro-Well. If you are using a standard immersion well, the light will remain off, and the control will only function as a temperature limit.

Can I use heat transfer grease with this 48-201 well?
No. Heat transfer grease is an insulator and will prevent the sensor from making the necessary metal-to-metal contact required to track water levels, leading to a locked-out burner.

Is this compatible with all Hydrostat models?
The EW201 is compatible with 3000, 3100, 3150, 3200, and 3250 series controllers. Always verify the insertion depth and nut length (standard vs. extended) for your specific boiler jacket clearance.
