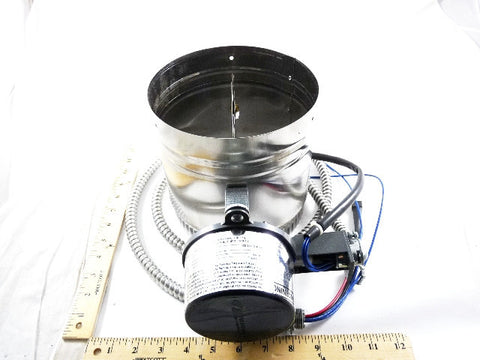

Hydrotherm 02-5837 Damper

Ensure peak efficiency in residential heating systems with the Hydrotherm 02-5837 Damper. This 7" vent damper is a critical component for Hydrotherm boiler parts, specifically engineered to minimize standby heat loss. By closing the flue when the burner at rest, it maintains higher internal temperatures, reducing frequent cycling and lowering energy consumption. The unit features a robust 62" cable, providing the necessary length for flexible installation in tight mechanical rooms or diverse venting configurations.

As a professional-grade automatic vent damper, this part is designed for direct compatibility with Hydrotherm's atmospheric boilers and gas-fired sectional units. The precision-engineered actuator ensures reliable flap positioning, preventing downdrafts that can lead to pilot outages or combustion issues. When performing a vent damper replacement, this OEM-spec component integrates seamlessly with existing Molex or multi-pin wiring harnesses, maintaining the safety interlock sequence required for standard operation. This ensures the gas valve only energizes once the draft hood damper is in the fully open position.

• Optimized Compatibility: Designed specifically for 7-inch vent pipes on Hydrotherm gas-fired boilers.
• Extended Connectivity: Includes a 62-inch cable for versatile wiring and control board connection.
• Efficiency Gains: Reduces convective heat loss through the chimney during off-cycles.
• Rugged Construction: Built to withstand the high-temperature environment of standard flue gas venting.

• Can this be used on systems with more than one appliance? No, this damper is rated for use with a single appliance only to ensure proper venting and safety compliance.
• Is the damper indicator visible for inspection? Yes, the design allows for easy visual verification of the damper's open or closed status during routine maintenance.
• Does the cable come pre-attached? The 62-inch cable is included to facilitate a simplified connection to the boiler's internal wiring harness.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
