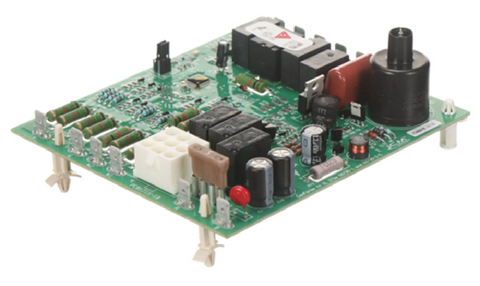

ICM Controls ICM2915 Board

Trane DSID674713P01 Replace

ICM Controls ICM2915 Furnace Control Board – Trane D674713P01 Replacement (OEM-Equivalent)

The ICM Controls ICM2915 Control Board is a form, fit, and functional replacement for the Trane Spark Ignition Control D674713P01. Engineered to OEM-equivalent standards, the ICM2915 is an automated gas ignition control designed to manage and monitor the complete furnace ignition sequence while maintaining comprehensive safety circuit protection. This board is an ideal replacement solution for restoring reliable operation in compatible Trane gas furnaces.

Key Features

• Direct Replacement: Replaces Trane D674713P01

• Automated Ignition Control: Monitors inducer, pressure switch, spark ignition, gas valve, flame sensing, and circulating blower

• Comprehensive Safety Monitoring: Includes high limit, rollout, and auxiliary limit switch circuits

• Two-Stage Heating: Supports low heat and high heat operation

• Short-Cycle Protection: Prevents damage from repeated on/off cycling

• Selectable Blower Off-Delay: Adjustable heat/cool blower off-delay times

• Onboard LED Diagnostics: Flash codes provide clear fault identification for easier troubleshooting

• Safety Lockout: Repeated ignition failures or flame loss will disable heat operation for safety

Electrical & Performance Specifications

• Line Voltage: 230 VAC

• Line Frequency: 50/60 Hz

• Control Voltage: 18–30 VAC

• Circulator Blower: 4 FLA @ 277 VAC

• High-Efficiency Blower: 10 mA @ 24 VAC

• Inducer Blower: 0.7 FLA, 1.5 LRA @ 24 VAC

• Combined Gas Valve Load: 1.5 A @ 24 VAC

• Minimum Flame Signal Threshold: 0.75 µA

Applications

• Gas furnaces requiring a replacement for Trane Spark Ignition Control D674713P01

• Residential and light commercial HVAC systems (verify model compatibility before purchase)

Product Details

• Manufacturer: ICM Controls

• Model: ICM2915

• Component Type: Furnace Control / Spark Ignition Control Board

Choose the ICM Controls ICM2915 Furnace Control Board for a reliable, cost-effective replacement that delivers OEM-level performance, enhanced diagnostics, and full safety monitoring for compatible Trane furnace systems.
