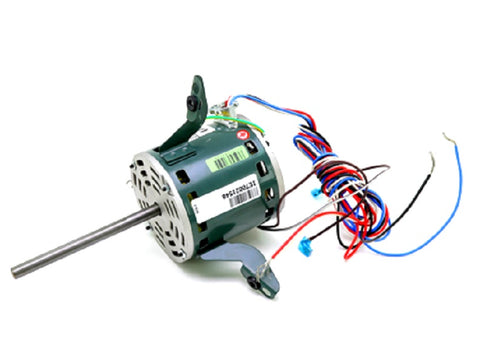

International Environmental 70021548 Motor

The International Environmental 70021548 is a heavy-duty horizontal fan coil motor engineered for 277V single-phase systems. Operating at 1050 RPM, this 1/4 HP replacement motor provides consistent airflow for IEC series air handlers and fan coil units. It features a counter-clockwise (CCW) rotation and is designed for high-static pressure applications where thermal protection and reliable torque are requirements for facility maintenance. As an OEM HVAC motor, it ensures proper fitment and performance without the modification risks associated with universal alternatives. The permanent split capacitor design enhances efficiency, making it a standard choice for technicians servicing commercial boiler/chiller loops and integrated terminal units. This IEC fan motor handles the rigorous duty cycles of hospitality and institutional environments, providing a direct-drop replacement that restores original CFM specifications to the terminal equipment.

• Direct-Fit OEM Compatibility: Specifically engineered for IEC 70021548 specifications, ensuring shaft length and mounting brackets align perfectly with existing blower wheels.
• Optimized for 277V Infrastructure: Built to handle the specific voltage requirements of commercial terminal units without excessive heat buildup.
• High-Torque Performance: The 1050 RPM rating ensures the fan assembly reaches the necessary static pressure to meet design airflow across the coil.
• Durable Sleeve Bearings: Designed for quiet operation and long-term service in horizontal air handler configurations.

Is the 70021548 motor compatible with 120V or 208-230V systems?
No, this is a 277V specific motor. Applying lower voltage will result in motor failure and improper torque, while higher voltage will damage the internal windings.

Does this motor include the run capacitor?
Standard replacement motors of this type typically require a specific microfarad rated capacitor. It is recommended to replace the capacitor during installation to ensure the motor operates at its rated efficiency.

Can I change the rotation direction of this IEC motor?
This model is a dedicated CCW rotation motor. It is not reversible. Verify your blower wheel pitch and housing configuration before installation.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
