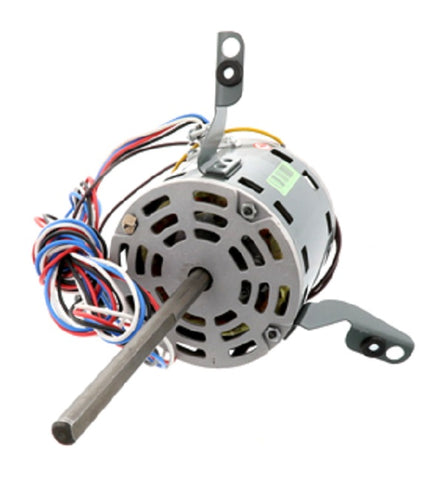

International Environmental 70021560 Motor

The International Environmental 70021560 Motor is a high-performance 1/10 HP blower motor specifically engineered for IEC fan coil units. Operating at 208-240V on a single-phase (1P) circuit, this 890 RPM direct drive motor provides the precise torque and static pressure required to maintain design airflow in commercial and residential fan coil applications. As a direct OEM replacement motor, the 70021560 ensures mechanical compatibility and electrical alignment with existing blower assemblies (HLY, HPY, and HHY series), reducing the risk of vibration-induced noise or premature bearing failure common with generic alternatives.

Built with a ball bearing system and an open-air over (OAO) enclosure, this direct drive blower motor is designed for high-duty cycles within the airstream. The 5KCP29GK6103S motor type utilizes a standard shaft configuration—typically 1/2-inch—for secure blower wheel mounting. Transitioning to this International Environmental 70021560 unit allows technicians to restore HVAC motor efficiency and system reliability, ensuring the fan coil unit operates within its original performance parameters for heating and cooling cycles.

• OEM Compatibility: Precision-matched for International Environmental (IEC) HLY06-14, HPY06, and HHY06-14 units to ensure a drop-in blower motor replacement.
• Optimized RPM Profile: The 890 RPM rating provides stable airflow while minimizing the decibel output often associated with higher-speed 3.3-inch or 48-frame motors.
• Durable Construction: Features high-grade ball bearings and an 890 RPM HVAC motor design to handle the continuous oscillation and thermal demands of FCU housings.
• Voltage Versatility: Dual-rated for 208-240V systems, making it compatible with a wide range of commercial power configurations without auxiliary transformers.

What are the symptoms of a failing IEC 70021560 motor?
Common indicators include a humming sound without blower rotation, high-pitched mechanical grinding from worn ball bearings, or an thermal overload trip causing the motor to cycle off prematurely. If you detect a burning electrical odor, the windings may have shorted due to moisture or sustained over-amperage.

Is the capacitor included with this replacement motor?
While this 1/10 HP fan coil motor typically requires a run capacitor (often 5 MFD / 370-440V), it is standard industry practice to replace the capacitor during any blower motor installation to ensure the PSC motor starts efficiently and draws correct running amps.

Can this motor be used for CW or CCW rotation?
The 70021560 is typically configured for a specific lead-end rotation. Verify the rotation of your existing International Environmental blower (CWLE or CCWLE) against the unit’s nameplate to ensure compatibility with your specific fan wheel orientation.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
