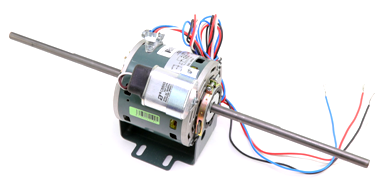

International Environmental 70021561 Motor

The International Environmental 70021561 Motor is a high-performance 1/12HP 208-240V PSC Motor engineered specifically for direct-drive fan coil units. As a genuine OEM replacement part, it ensures your HVAC system maintains its factory-specified CFM output and original AHRI ratings without requiring field modifications. This Permanent Split Capacitor (PSC) motor features a dual-speed design, operating at 1325 and 1100 RPM at 60Hz. It is designed for commercial fan coil maintenance and is a direct drop-in for units like the CBF04 series. The HVAC blower motor construction utilizes robust materials to withstand high-cycle operations in demanding environments, ensuring quiet performance and optimal energy efficiency. For contractors performing a fan coil unit motor replacement, the E020-70021561 provides a reliable solution that preserves ETL certification and system sound quality across 208V and 240V AC applications.

• Direct Drop-In Compatibility: Engineered as a precise OEM motor replacement for IEC fan coil units, ensuring a simplified installation process for technicians.
• Dual-Speed Performance: Features 1325/1100 RPM settings to support varied airflow requirements and operational modes.
• Optimized Efficiency: The PSC motor design provides an excellent balance of power and low amperage draw (0.6A) for reduced energy consumption.
• Quiet Operation: Built to original manufacturer specifications to maintain low decibel levels and minimize vibration transmission within the ductwork.

Is this a direct replacement for 5KCP29BK6836AS?
Yes, the 70021561 is the current manufacturer-designated replacement for motor model 5KCP29BK6836AS and fits several IEC CBF series air handlers.

Can this motor operate on both 208V and 230V systems?
This 208-240V HVAC motor is rated for use across the entire voltage range, making it compatible with both 208V and 230V/240V single-phase power supplies.

Does this motor require a specific capacitor?
As a Permanent Split Capacitor (PSC) motor, it requires a run capacitor for operation. It is recommended to check the nameplate or existing unit specifications for the correct microfarad (MFD) rating when replacing.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
