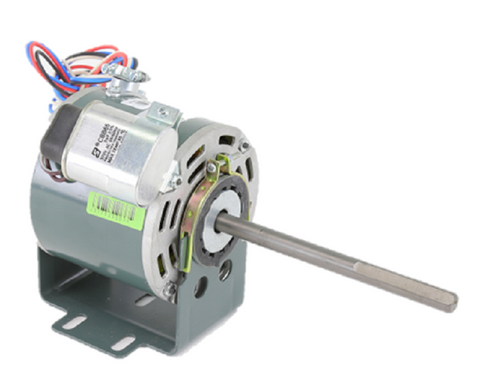

International Environmental 70556329 Motor

The International Environmental 70556329 Motor is a high-performance 1/30 HP fan coil motor designed for direct drive applications in commercial and residential HVAC systems. Operating at 115V with a 1600 RPM nominal speed, this 3-speed motor allows for precise airflow modulation to meet specific cooling or heating loads. Technical specifications include a CCWLE (Counter-Clockwise Lead End) rotation and a sustained current draw of approximately 0.83 Amps. This unit is the direct OEM replacement for the 42AA680020 and the 5KCP29BK6747S, ensuring a seamless drop-in installation without the need for mounting modifications. Built as a permanent split capacitor (PSC) motor, it provides reliable 60Hz single-phase operation for IEC fan coil units, including popular series like CBF, CBY, and CHF. Using a genuine IEC replacement motor ensures that the internal blower wheel and housing maintain the airflow static pressure required by the original equipment manufacturer.

Key Benefits:

• Direct Cross-Reference: Engineered to replace part numbers 70556329, 42AA680020, and 5KCP29BK6747S with zero footprint adjustments.
• Multi-Speed Versatility: Features 3-speed taps for optimized CFM control and system balancing.
• OEM Reliability: Ensures electrical compatibility with 115V/60Hz/1PH fan coil unit controllers.
• Quiet Operation: Designed specifically for low-noise fan coil applications in occupied spaces.

Common Questions:

What is the standard rotation for this motor?
This motor features a Counter-Clockwise Lead End (CCWLE) rotation. Always verify the rotation of your existing blower wheel before installation to ensure proper discharge.

Is this compatible with 208-230V systems?
No, this is a dedicated 115V motor. Applying 208-230V power will cause immediate electrical failure and is not supported.

Does this motor include the required capacitor?
Yes, most technical configurations for the 70556329 package include the necessary permanent split capacitor for field wiring.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
