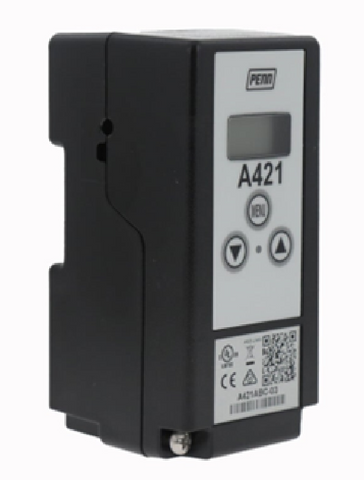

Johnson Controls A421ABC-03 Temperature Control

The Johnson Controls A421ABC-03 Temperature Control is a versatile, line-voltage electronic thermostat engineered for high-accuracy temperature management in HVAC and refrigeration systems. Operating on 120/240 VAC, this single-stage control features a Single Pole Double Throw (SPDT) relay output, making it the industry-standard direct replacement for the A319ABC-07-01 and A419ABC-2 models. The unit provides a broad temperature control range of -40 to 212?F (-40 to 100?C), suitable for applications ranging from walk-in coolers to boiler pump cycling. It includes a 1,035 ohm A99 PTC temperature sensor featuring a 2-inch stainless steel probe and a 9.75-foot lead, ensuring reliable sensing in diverse orientations.

Designed for field efficiency, the A421ABC-03 utilizes a high-impact thermoplastic NEMA 1 (IP20) enclosure that supports both DIN rail and surface mounting. The front panel is equipped with a bright, adjustable backlit LCD display and a three-button touchpad, allowing technicians to navigate basic and advanced programming menus without opening the cover. Key performance features include an adjustable anti-short cycle delay to prevent rapid compressor cycling, as well as temperature offset and setback controls for precision calibration and energy-efficient nocturnal operation. With global certifications including cULus, CE, and FCC, this controller is built to withstand 0?95% RH non-condensing environments while maintaining an accuracy of ?1.8?F across its primary operating range.

Key Benefits for Technicians

• Universal Compatibility: Serves as a drop-in replacement for A419 and A319 series controls, minimizing truck stock and downtime.
• Enhanced Equipment Protection: Integrated anti-short cycle delay and high/low temperature setpoints safeguard compressors and motors from premature failure.
• Simplified Commissioning: Three-button interface eliminates the need for internal jumpers, allowing heating or cooling mode selection directly from the menu.
• Flexible Mounting: The NEMA 1 enclosure adapts to standard 35mm DIN rails or flat surfaces for rapid installation in existing control panels.
• Advanced Calibration: Electronic sensor offset allows for fine-tuning the display to match high-precision secondary thermometers.

Common Technical Questions

Can the sensor leads be extended?
Yes, the A99 series temperature sensor leads can be extended up to 500 feet using 16 AWG wire. For longer runs, ensure the use of shielded cable to minimize electromagnetic interference (EMI) and maintain reading accuracy.

Does this unit support both heating and cooling modes?
The A421ABC-03 is a universal temperature control. It can be configured for either "Close on Rise" (Cooling) or "Open on Rise" (Heating) operations through the digital programming menu, eliminating the need for separate mechanical controls.

What happens if the temperature sensor fails?
The control includes a sensor failure mode (SF). Technicians can program the relay to remain either energized (On) or de-energized (Off) in the event of a sensor short or open circuit, providing a failsafe for critical inventory.
