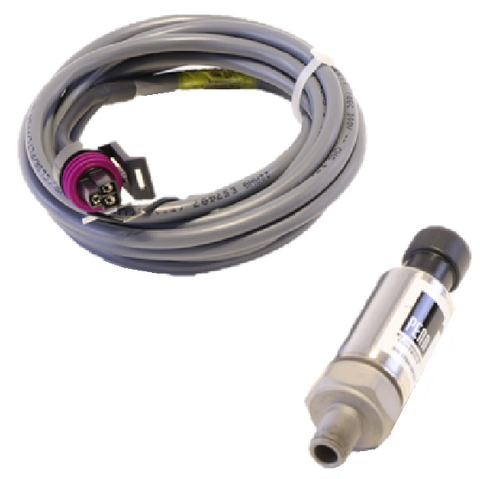

Johnson Controls P499VAP-105K Pressure Transducer Kit

The Johnson Controls P499VAP-105K is a precision electronic pressure transducer engineered for demanding HVACR applications, providing a linear 0 to 10 Vdc output signal. Designed for high-side pressure monitoring in commercial refrigeration and air conditioning systems, this kit features a 0 to 500 psi range with a robust 1/8"-27 NPT external thread fitting. As the direct replacement for the legacy P499VAP-105, it utilizes a stainless steel construction to ensure compatibility with most non-corrosive refrigerants, including ammonia and high-pressure media. The Packard electrical connection integrated into the design offers an IP67 rating, protecting internal electronics from moisture and vibration. This specific kit includes a 6.6' wiring harness, simplifying field installation and ensuring system pressure control accuracy. Its low power consumption and high EMI/RFI shielding make it an essential component for contractors maintaining refrigeration pressure monitoring systems requiring long-term stability and precise signal feedback.

Key Benefits

• Broad Refrigerant Compatibility: Designed with a stainless steel sensing element suitable for various refrigerants and non-corrosive liquids.
• High Accuracy Output: Delivers a consistent 0-10V signal for integration with programmable logic controllers (PLCs) and building automation systems.
• Complete Installation Kit: Ships with a 2-meter (6.6') wiring harness to reduce installation time and overhead costs.
• Direct Field Replacement: Specifically replaces P499VAP-105, ensuring a drop-in mechanical and electrical fit without site modifications.
• Industrial Durability: Rated for high-cycle life even in environments characterized by thermal shock and mechanical vibration.

Common Questions

Is the wiring harness included with the P499VAP-105K?
Yes, this kit is specifically designated with the "K" suffix, meaning it includes the 6.6-foot (2-meter) Packard wiring harness required for the electrical interface.

Can this transducer be used on the high-pressure side of an R-410A system?
With a 0 to 500 psi range and robust burst pressure ratings, this pressure transducer is suitable for most standard high-side refrigerant applications within that pressure window.

What is the thread size for the mechanical connection?
The unit features a standard 1/8"-27 NPT external thread, providing a secure, leak-proof fit for standard manifold or pipe taps.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
