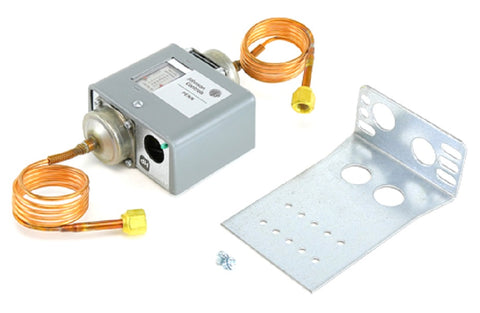

Johnson Controls P74AA-1 Pressure Control

The Johnson Controls P74AA-1 is a robust differential pressure control designed primarily for monitoring lube oil pressure in high-performance refrigeration compressors. This SPST switch is engineered to close on a decrease in pressure difference, providing a critical safety cut-out to prevent mechanical failure. It features a wide adjustable range from 8 to 70 psi, with a manageable switch differential of 8 to 30 psi. Built for durability in commercial environments, the P74AA-1 utilizes stainless steel bellows and includes a 36-inch capillary with a 1/4-inch flare nut for versatile installation. With a high electrical rating of 20 amps at 208-600 VAC/VDC, this HVAC pressure switch integrates seamlessly into demanding control circuits. Whether you are performing a P74AA-1 replacement or a new system install, this unit ensures precise refrigeration oil pressure monitoring and reliable compressor protection across diverse voltage requirements.

• Universal Voltage Compatibility: Rated for 208-600V applications, reducing the need for multiple stock units.
• Corrosion Resistance: High-grade stainless steel bellows offer superior longevity against refrigerant and oil exposure.
• Precise Setpoints: Independent adjustment for pressure range and switch differential allows for fine-tuning to specific compressor requirements.
• Flexible Installation: Long 36-inch capillary length simplifies mounting in crowded mechanical rooms.

Common Questions

How do I wire the P74AA-1 into a control circuit?
The P74AA-1 functions as an SPST switch that opens on a rise in pressure difference. In an oil safety application, it is typically wired in series with the compressor contactor coil or a time delay relay to interrupt the circuit if the pressure differential falls below the setpoint.

What is the difference between setting the range and the differential?
The adjustable range (8 to 70 psi) determines the point at which the switch acts, while the switch differential (8 to 30 psi) determines the pressure increase required to reset the switch to its original position.

Can this control be used with all common refrigerants?
Yes, the stainless steel bellows are compatible with most non-corrosive refrigerants and standard refrigeration oils used in light and heavy commercial systems.
