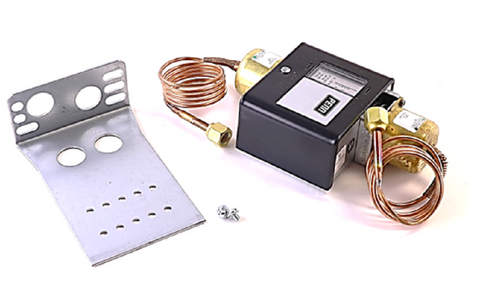

Johnson Controls P74FA-10 Pressure Control

The Johnson Controls P74FA-10 is a high-performance differential pressure control engineered for precision monitoring in commercial HVACR systems. Designed with a Single Pole Double Throw (SPDT) switch, this unit excels in proof-of-flow applications across chillers and water-cooled condensers. With an adjustable range of 2 to 26 PSI and a 1.5 PSI fixed differential, it provides the narrow switch differential required for sensitive system feedback and corrective action via supplementary control equipment.

Built for durability in demanding machine rooms, the P74FA-10 features heavy-duty brass bellows and a completely enclosed contact mechanism to prevent debris interference. The internal calibrated scale and external adjustment wheel allow technicians to verify setpoints without removing the cover, streamlining routine maintenance. This mechanical pressure switch is compatible with non-corrosive refrigerants, air, oil, and liquid media, making it a versatile choice for lube oil pressure sensing on refrigeration compressors or monitoring circulation in closed-loop water systems.

• Universal Compatibility: Ideal for HVACR diagnostics and system status indication through panels or pilot lights.
• High Overrun Protection: Robust sensing elements withstand extreme pressure spikes during shipment or system surges.
• Contractor-Friendly Install: Single unit mounting and wiring architecture significantly reduces field labor time.
• Stable Performance: Long-life contact structure ensures high contact force with zero contact bounce for reliable electrical switching.

Common Questions & Maintenance Insights

What is the best application for the P74FA-10 versus the P74EA?
The P74FA-10 is specifically designed for applications requiring a narrow fixed differential (1.5 PSI), whereas the EA series typically utilizes a wider 3.5 PSI differential. Use the FA model when tighter control over the pressure drop is critical for system safety.

How do I adjust the setpoint during a service call?
Setpoints are adjusted via the notched cam or disk located on the top of the control. The visible scale allows for immediate confirmation of the differential pressure at which the SPDT contacts will reposition.

Can this unit be field-repaired?
While the power elements can be replaced in the field if they become compromised, the internal switch mechanism is not serviceable. If the contacts fail, the entire pressure control assembly should be replaced to ensure system integrity.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
