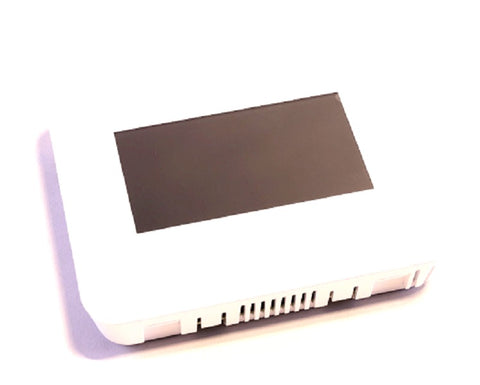

Johnson Controls TEC3630-14-000 Thermostat

The Johnson Controls TEC3630-14-000 is an enterprise-grade networked thermostat controller designed for seamless integration into BACnet MS/TP or N2 building automation systems (BAS). As a professional-tier RTU/Heat Pump thermostat, it provides precision control for single or two-stage conventional rooftop units and heat pump systems with economizer support. This model is the high-performance direct replacement for legacy units including the TEC2602-4, TEC2102-4, and TEC2604-4, allowing for a modern hardware upgrade without requiring structural changes to your existing RS-485 serial protocol bus. Featuring a high-definition touchscreen UI and a integrated USB port, contractors can rapidly clone configurations across multiple units, significantly reducing commissioning time on large-scale commercial projects.

Key Benefits

• Field-Selectable Communications: Supports both BACnet MS/TP and legacy N2 networked protocols for maximum versatility in Metasys or third-party systems.
• Streamlined Installation: The USB port configuration allows for simple backup, restore, and cloning of settings across identical TEC3000 series models.
• Advanced Control Logic: Utilizes a Proportional-Integral (PI) time-proportioning algorithm to maintain tight temperature tolerances and eliminate offset.
• Equipment Versatility: Specifically engineered to manage RTU and Heat Pump equipment with or without staged economizer control.
• Built-in Reliability: Features non-volatile programming memory and configurable binary inputs for remote setback or service alarms.

Common Questions

Does this model require a separate communication board for BACnet?
No, the TEC3630-14-000 features field-selectable BACnet MS/TP and N2 communication built directly into the hardware, eliminating the need for additional modules.

Can I use this to replace an older TEC2102 or TEC2600 series thermostat?
Yes, this is the designated direct replacement for the TEC2102-4, TEC2102-1, TEC2604-4, TEC2602-4, TEC2601-4, and TEC2104-4, maintaining terminal compatibility for standard applications.

How does the USB cloning feature work for large jobs?
Once one unit is fully configured, you can export the settings to a standard USB drive and "flash" those parameters onto all other TEC3630-14-000 units on the site, ensuring consistent operation and faster handoff.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
