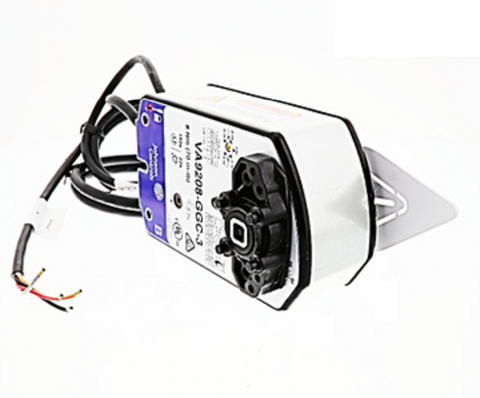

Johnson Controls VA9208-GGC-3 Actuator

The Johnson Controls VA9208-GGC-3 Actuator is a heavy-duty spring return direct-coupled actuator designed for the precise proportional control of VG1000 Series ball valves ranging from 1-1/4 to 2 inches. This unit provides 70 lb-in torque (8 Nm) and features a microprocessor-controlled brushless DC motor that maintains a constant 150-second power-on run time regardless of the load. Built for versatility, it supports 24Vac/Vdc power and accepts multiple control signals, including 0-10Vdc, 2-10Vdc, and 4-20mA via the integrated 500 Ohm resistor.

This model is equipped with two SPDT auxiliary switches for position signaling and end-stop verification, which are essential for complex HVAC valve automation. The 48-inch appliance cable includes an integral 3/8-inch FMC connector to streamline field wiring and ensure NEMA 2 protection. Pro-grade internal stall detection eliminates the need for mechanical limit switches, reducing the risk of motor burnout during high-cycling applications in chilled water, hot water, or low-pressure steam systems.

Key Benefits

• Broad Compatibility: Seamlessly integrates with Johnson Controls VG1000 2-way and 3-way ball valves for reliable hydronic control.
• Precise Modulation: Advanced microprocessor logic ensures stable, proportional control and repeatable positioning for high-performance building automation systems.
• Mechanical Fail-Safe: Robust spring return mechanism provides 17–25 second emergency closing or opening during power loss.
• Multi-Signal Support: Field-selectable 0(2)-10 VDC or 0(4)-20 mA input signals optimize the VA9208-GGC-3 for diverse controller outputs.
• Integrated Feedback: Provides a 0-10 VDC feedback signal to the controller for real-time monitoring and master-slave sequencing.

Common Questions

• Can this actuator be used in steam applications? Yes, when paired with a compatible stainless steel trim VG1000 valve and a thermal barrier, it is suitable for low-pressure steam up to 15 psig.
• How do I adjust the auxiliary switches? The S1 switch is fixed at 83% closing, while the S2 switch is field-adjustable from 5% to 74% for customized end-stop signaling.
• Does it require a separate linkage? No, this is a direct-coupled ball valve actuator, featuring an integral linkage designed for the VG1000 series, which simplifies mounting and reduces installation time.
