Johnson Controls WHA-PKD3-200C Wire Harness

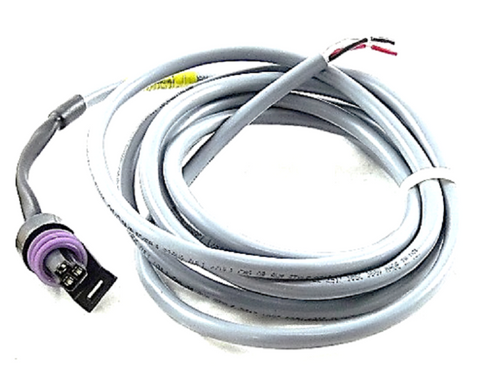

The Johnson Controls WHA-PKD3-200C Wire Harness is a 6.5-foot (78-inch) field-replacement cable specifically engineered for HVACR control wiring and pressure transducer integration. This heavy-duty harness utilizes a 3-pin Packard connector, ensuring a moisture-resistant, secure-lock interface that prevents signal loss or intermittent connectivity in high-vibration rooftop units and industrial chillers. Designed for seamless P499 series transducer compatibility and System 450 modular controls, this assembly simplifies the wiring process for technicians by providing a pre-terminated solution that meets factory specifications. The multi-conductor shielded cable design protects low-voltage signals from electromagnetic interference (EMI), which is critical for maintaining accurate sensor readings in complex electronic control systems. By utilizing this OEM-grade wire harness, contractors ensure reliable power distribution and signal feedback between Johnson Controls sensors and the primary HVAC control module, reducing diagnostic time and preventing long-term equipment downtime.

Key Benefits

• Factory-Terminated Connectivity: Features a high-integrity Packard connector for a plug-and-play interface with compatible pressure sensors.
• Extended Lead Length: The 6.5-foot cable allows for flexible routing through conduit and cabinets in larger commercial installations.
• Industrial Durability: Rated for high-temperature environments and resistant to common HVAC oils and chemical exposure.
• Signal Integrity: Minimizes voltage drop and signal noise, ensuring the electronic controller receives precise data for system cycling.

Common Questions

Is the WHA-PKD3-200C compatible with standard P499 transducers?
Yes, this 3-pin Packard harness is the standard physical interface for the Johnson Controls P499 series electronic pressure transducers.

Can this harness be used for both suction and discharge pressure sensors?
Yes, as long as the sensor utilizes the three-wire Packard style connection, this harness will provide the necessary power and feedback loop integration.

Is this cable rated for outdoor use?
The harness construction is designed for the rigorous internal environments of condensing units and air handlers, providing excellent resistance to moisture and heat when properly routed.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
