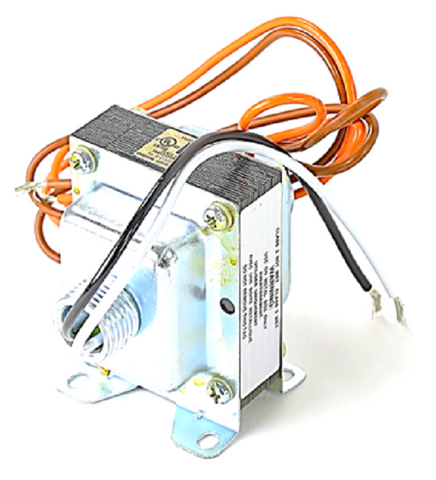

Johnson Controls Y65A13-0 Transformer

The Johnson Controls Y65A13-0 is a heavy-duty 40 VA step-down transformer designed for reliable power conversion in commercial and industrial HVACR control circuits. Engineering-grade construction ensures a stable 24 V secondary output from a 120 V primary source, making it a standard solution for powering thermostats, gas valves, and relays. This unit features energy-limiting overload protection to safeguard low-voltage components against current spikes and short circuits, eliminating the need for external fusing in many Class 2 applications. The physical configuration includes a foot mount for secure attachment to panels or junction boxes, integrated with a male conduit fitting. For efficient field wiring, the primary side is equipped with 8-inch leads, while the secondary side provides extended 30-inch leads to reach distant terminal strips without additional splicing.

Key Benefits for Contractors:

• High Compatibility: Standard 120V to 24V transformer specs make this a direct replacement for many OEM control transformers.
• Integrated Safety: Built-in energy-limiting type overload protection prevents downstream component damage during electrical faults.
• Flexible Installation: Features a rugged foot mount and male fitting for versatile mounting in various cabinet layouts.
• Extended Secondary Leads: The 30-inch secondary wiring facilitates easier routing through complex wire chases and large air handlers.
• Class 2 Rated: Meets rigorous standards for low-voltage power sources, ensuring compliance with local electrical codes.

Common Questions:

Can this unit replace a 20 VA or 30 VA transformer?
Yes, providing the secondary voltage is 24V. With a 40 VA capacity, this unit offers more "headroom," allowing it to handle higher amperage loads without overheating, which is often an upgrade for older systems.

What is the purpose of the male conduit fitting?
The male fitting allows for direct mounting to a standard 1/2-inch knockout on a junction box, protecting the primary leads and simplifying the transition from high-voltage conduit to the device.

Is this transformer suitable for continuous duty applications?
Yes, the Y65A13-0 is designed for continuous operation in environmental control systems, provided the total VA draw of the connected 24V devices does not exceed 40 VA.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
