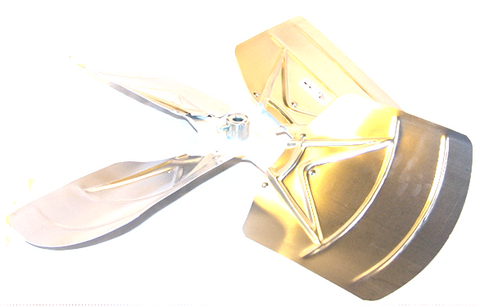

Lennox 16C01 Fan Blade

The Lennox 16C01 is a high-performance condenser fan blade engineered for residential and light commercial heat pumps and air conditioning units. This 24-inch diameter component features 4 balanced aluminum blades with a 27-degree pitch, specifically designed to optimize airflow while minimizing static pressure and operational noise. Built by Lau Industries, the 16C01 serves as a direct 1:1 replacement for the legacy 16C0101 part number, ensuring a drop-in fit for maintenance professionals servicing Lennox, Armstrong, and Ducane equipment. This blade utilizes a 1/2-inch bore and is configured for clockwise (CW) rotation when facing the discharge side. The fixed hub is stationed on the discharge side for maximum stability during high-RPM cycles. Whether you are performing a seasonal overhaul or an emergency repair, this OEM replacement fan blade provides the exact specifications required to restore system efficiency and prevent motor strain caused by imbalanced or pitched-out generic alternatives.

• Precision Balanced: Factory-set 27-degree pitch ensures even air distribution and reduces vibration across the motor shaft.
• Direct OEM Match: Fully compatible with part numbers 16C0101 and P-8-6406 for seamless integration in existing HVAC cabinets.
• Corrosion Resistance: Heavy-duty aluminum construction prevents oxidation in outdoor condensing environments.
• Optimized Bore Fit: The 1/2" diameter hub ensures a secure, slip-free connection to standard 48-frame and 56-frame motors.

What is the rotation direction for this blade?
The 16C01 is a Clockwise (CW) rotation blade when viewing the unit from the discharge (top) side. Always verify rotation against the existing motor and system requirements before installation.

Is this blade compatible with other brands?
While designed primarily for Lennox equipment, it is a cross-reference match for various Armstrong and Ducane models using identical 24" 4-blade configurations. Check your specific model number for fitment.

Does the hub location matter?
Yes, this unit features a hub located on the discharge side. This is critical for maintaining the correct axial position of the blade within the venturi or fan shroud to ensure peak cfm output.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
