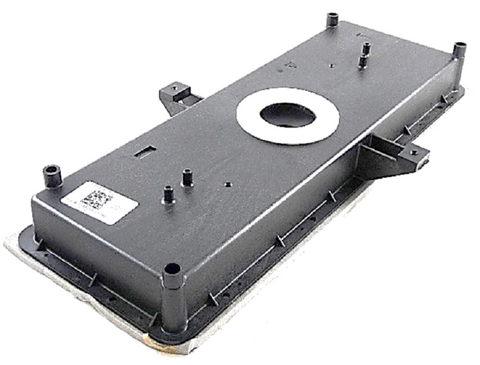

Lennox 44W54 Collector Box

The Lennox 44W54 Collector Box is a precision-engineered OEM replacement part (Model 102109-01) designed for high-efficiency furnace combustion systems. As a veteran HVAC technician, you know the collector box is critical for managing condensate drainage and ensuring proper pressure switch calibration. This specific Lennox furnace part is built to withstand high-pressure environments, effectively collecting and distributing fluid to prevent siphoning issues that often trigger "pressure switch lockout" codes. It is a direct fit for several Lennox G51 and G61 series units, including the G51MP-36C-090-3, G51MP-48C-090-1, and G61MP-48C-090-6. Replacing a cracked or clogged condensate collector box is a standard procedure to restore optimal airflow and heat transfer, ensuring the inducer motor can properly ramp through its calibration sequence without failing high-fire or low-fire checks. This durable component ensures seamless integration into the refrigeration cycle, maintaining the structural integrity of the furnace’s primary and secondary heat exchanger transition.

• Optimized Condensate Management: Prevents fluid backup in the 1st elbow and eliminates internal port blockages that cause system tripping.
• Direct OEM Compatibility: Engineered specifically for Lennox 44W54 applications, ensuring exact port alignment for pressure switches and drain tubes.
• Enhanced Combustion Efficiency: Maintains consistent airflow and gas distribution, reducing energy waste and preventing uneven heat distribution.
• Industrial-Grade Durability: Constructed from robust materials to handle the thermal stress and corrosive nature of combustion byproduct condensate.
• Service Reliability: Helps resolve common "35" error codes and calibration failures during the inducer motor ramp-down phase.

• What are the signs of a failing Lennox 44W54 collector box? Technicians usually look for water leaking from the hose connections, cracks in the plastic housing, or consistent pressure switch lockout codes despite the switch and inducer being functional.
• Does this part include the necessary gaskets for installation? This is the 102109-01 collector box assembly; it is recommended to verify if additional flange gaskets (like the 100483 series) are required for your specific furnace model during the swap.
• Will this fix a furnace that won't fire due to a pressure switch code? If the internal sample ports in the box are restricted or if the box is creating a siphon effect that prevents the switch from registering pressure changes, this replacement is often the definitive fix.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
