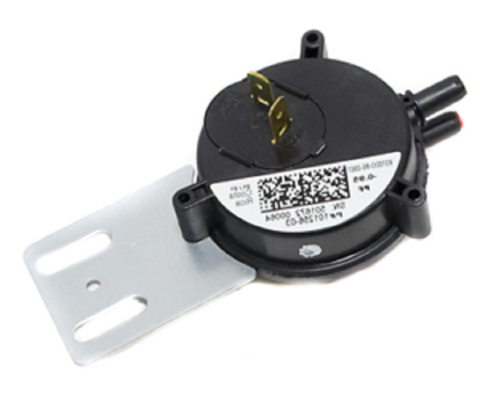

Lennox 51W91 Pressure Switch

The Lennox 51W91 Pressure Switch is a critical safety component engineered for precision in Lennox gas furnace repair and maintenance. As an authentic OEM HVAC replacement part, this SPST pressure switch is calibrated to a specific set point of -0.95" WC (water column), ensuring the inducer motor is drafting correctly before allowing the ignition sequence to proceed. Professionals recognize the Lennox 51W91 as the 56M05 direct replacement, maintaining the exact electrical and pneumatic specifications of the original factory-installed component. This unit features dual 1/4" barb connections for secure pneumatic tubing attachment, providing accurate monitoring of negative pressure within the combustion chamber. When diagnosing furnace pressure switch stuck open codes, utilizing this genuine part ensures seamless integration with the existing control board and prevents nuisance trips caused by the drifting tolerances often found in universal alternatives.

Key Benefits for Contractors

• Precise Calibration: Factory-set at -0.95" WC to maintain strict compliance with system design and burner safety protocols.
• Application Compatibility: Serves as the official Lennox 51W91 replacement for 56M0501, streamlining inventory for service trucks.
• Secure Interfacing: Dual 1/4" barb configuration ensures a leak-free seal and reliable signal to the integrated furnace control.
• OEM Reliability: Built to withstand the high-temperature environments of residential and light commercial air handlers.

Common Questions

Is the Lennox 51W91 compatible with 56M05?
Yes, the 51W91 is the direct engineering successor and replaces part number 56M0501 in all compatible HVAC equipment.

What does a -0.95" WC rating signify?
This rating indicates the specific negative pressure threshold required to close the SPST switch contacts, verifying that the venting system is clear and the inducer is operating at the correct RPM.

Will this switch resolve a "Pressure Switch Open" error code?
If the inducer motor is functional and the flue is clear, replacing a failed factory switch with this Lennox furnace pressure switch will typically restore the ignition sequence.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
