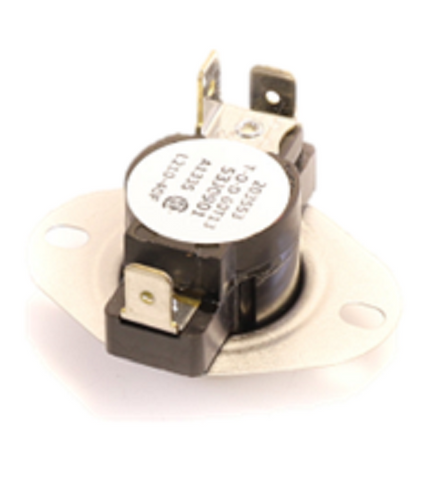

Lennox 53J09 Limit Switch

The Lennox 53J09 Limit Switch is a high-precision safety component engineered for HVAC system protection and thermal monitoring. This 170-210F AUTO Limit Switch functions as a critical high-limit control, automatically opening the circuit if the heater exchange or plenum temperature exceeds the 210°F threshold and resetting once temperatures drop to the 170°F differential. Designed for seamless integration into Lennox furnaces and air handlers, this OEM replacement part (also identified by part number 53J0901) ensures consistent system operation by preventing overheating conditions that could lead to heat exchanger fatigue or unsafe blower cycling. As a veteran-grade HVAC temperature limit switch, it features L210-40F specifications, providing the robust reliability required for commercial and residential service calls. Whether you are performing routine maintenance or emergency furnace limit switch replacement, this component offers the exact technical specifications necessary to restore factory-standard performance and safeguard the equipment's primary heating elements.

• Precise Thermal Regulation: Maintains safe operating parameters with a fixed 210°F cutout and a 170°F automatic reset.
• Broad Compatibility: Serves as a direct OEM replacement for various Lennox LGA and furnace models, ensuring proper fit and electrical alignment.
• Rugged Construction: Built to withstand the high-cycle demands of modern forced air systems without premature contact failure.
• Safety Compliance: Helps maintain HVAC system integrity by preventing excessive heat buildup in the plenum or combustion chamber.

How do I know if my Lennox limit switch is bad?
If your indoor blower fan runs constantly or the burner shuts off before the thermostat is satisfied, the 53J09 limit switch may have an open circuit or failed to reset. Use a multimeter to check for continuity across the terminals when the system is cool.

Can this switch be used in models other than Lennox?
While designed as a primary Lennox furnace part, it can be used in other applications requiring an L210-40F auto-reset switch, provided the mounting footprint and terminal configuration match your specific technical data sheet.

Is this an automatic or manual reset switch?
This is a standard AUTO Limit Switch. It does not require a manual button press; it will automatically close the circuit once the internal sensor detects the temperature has fallen back to the 170°F reset point.
