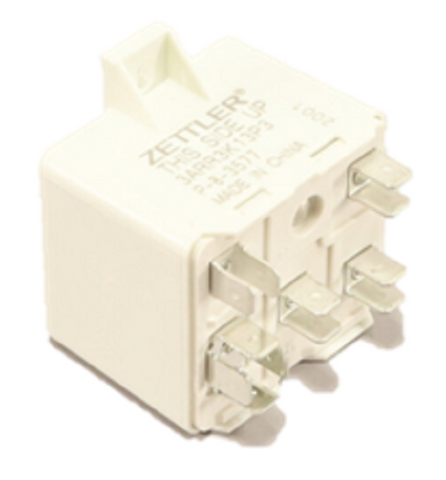

Lennox 58327 Potential Relay

The Lennox 58327 Potential Relay is a specialized voltage-sensing component engineered for single-phase capacitor-start capacitor-run (CSR) motors within residential and light commercial HVACR equipment. This genuine OEM Lennox part (also referenced as P-8-3577) is designed to manage the high torque requirements of compressor startup by precisely switching the start capacitor out of the circuit. Utilizing Back-Electromotive Force (BEMF) detection, the relay features a 332V continuous coil rating and a calibrated pickup voltage range of 162V to 175V. With a dropout voltage between 40V and 90V, it ensures that the start winding is protected once the motor reaches approximately 75-80% of its rated speed. The integration of Zettler ZCPRX2AE2 engineering provides a durable metal tab mount and five dual quick-connect terminals, facilitating reliable electrical isolation and high-amperage switching capacity for Lennox, Armstrong, and Ducane condensing units.

• Precise BEMF Sensing: Automatically disengages the start capacitor to prevent winding overheating and ensure efficient motor transition.
• High Voltage Tolerance: Features a 332V continuous coil voltage, providing stability during transient voltage spikes and heavy-duty cycling.
• Universal Cross-Compatibility: Direct replacement for several Allied, Armstrong, and Ducane part numbers, including P-8-3577 and R46930-001.
• Heavy-Duty Construction: Industrial-grade housing and 35/50 Amp rating at 400 VAC for long-term reliability in varying ambient conditions.

How do I verify if my potential relay is failing?
Technicians should check for continuity between terminals 1 and 2 (normally closed). If the contacts remain open when the system is off, or if the compressor hums without starting (suggesting the start capacitor isn't being engaged), the relay likely needs replacement.

Can this relay be used with any start capacitor?
While the 58327 relay is versatile, it must be paired with a start capacitor that matches the microfarad (µF) rating and voltage requirements specified by the compressor manufacturer for proper torque delivery.

What is the orientation for mounting this relay?
For optimal contact performance and gravity-aided operation, most potential relays should be mounted in an upright position with the terminals facing downward or as specified by the OEM internal mechanism.
