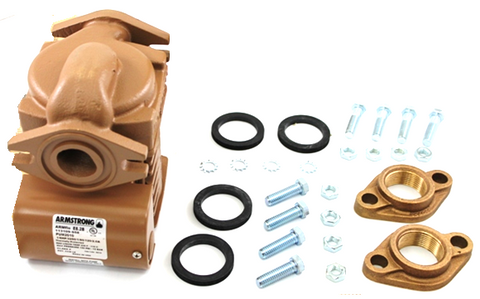

Lochinvar & A.O. Smith 100166430 Pump

The Lochinvar & A.O. Smith 100166430 Pump is a high-performance 1/6HP circulator pump designed for reliable fluid transfer in commercial and residential hydronic systems. Operating at 115V and a fixed speed of 3250 RPM, this unit features a counterclockwise lead end (CCWLE) rotation, ensuring precise flow dynamics for domestic water heater and boiler applications. It is the direct OEM successor and identical to PUM3010, engineered to integrate seamlessly without piping modifications. With a weight of approximately 11 to 16 lbs and a durable bronze or cast-body construction, it supports high-head requirements up to 9250lb/hr capacity. This centrifugal pump is commonly utilized in Lochinvar AWN and WAN series units, providing the necessary lift for efficient heat exchange. For technicians, the 100166430 replacement pump offers a drop-in solution to restore system pressure and thermal consistency in demanding HVACR environments.

• Direct OEM Compatibility: Serves as a 1:1 replacement for the discontinued Lochinvar PUM3010, maintaining original factory specifications.
• High-Speed Efficiency: The 3250 RPM motor provides the high-velocity circulation required for modern high-efficiency water heaters.
• Industrial Build Quality: Designed for continuous duty cycle and thermal endurance in boiler loop applications.
• Simplified Installation: Standardized flange mounting and 115V 1PH electrical requirements reduce field labor time.

What models are compatible with the 100166430 pump?
This pump is specifically engineered for Lochinvar and A.O. Smith units, including models AWN151PM, AWN200PM, AWN201PM, WAN200PM, and WAN201PM.

Is the PUM3010 different from the 100166430?
No, they are the same technical part. The 100166430 is the updated part number for the PUM3010; all electrical and physical specifications remain identical.

Which direction does this pump rotate?
This model is a CCWLE (Counterclockwise Looking at End) rotation pump, which is critical for the internal volute design and specific system flow requirements.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
