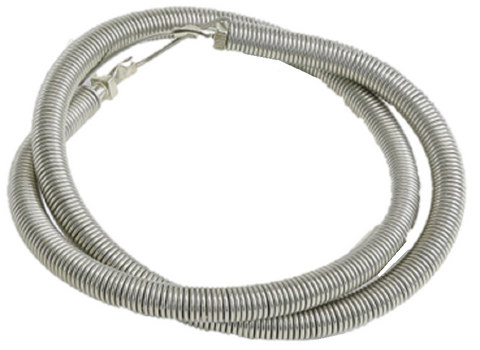

MARS 34602 Restring Kit

The MARS 34602 Restring Kit is a professional-grade solution for field-repairing failed electric heat strip heaters. This 5000W 240V heater coil provides a cost-effective alternative to complete element replacement, specifically engineered to restore performance in air handlers and electric furnaces. As the direct replacement for the 6968 restring kit, this nichrome coil is close-wound and designed to be stretched to the specific length required for your heater frame, ensuring optimal heat transfer and preventing hotspots.

For contractors, the MARS 34602 simplifies inventory by offering a versatile 5kW@240V restring kit (3750W at 208V) that fits multiple applications. The kit features welded terminal bolts to ensure high-integrity electrical connections and low resistance, which is critical for preventing terminal burnout. Included ceramic bushings (standard and extra-long), male and female insulators, and a 300-degree fuse link provide all the necessary hardware for a secure, code-compliant repair. Whether you are servicing a residential heat pump backup system or a dedicated electric furnace, this heating element repair kit delivers the reliability required for high-demand thermal cycles.

Key Benefits for Technicians:

• Broad Compatibility: Acts as an exact replacement for the 6968 and is compatible with most 5kW 240V heat strip assemblies.
• Field-Adaptable Design: The 3/8-inch diameter nichrome coil is stretchable from 44.62 inches to over 127 inches to match OEM specifications.
• Superior Conductivity: Welded terminal bolts eliminate the mechanical failure points common in crimped alternatives.
• Complete Hardware Kit: Includes multiple sizes of ceramic bushings and insulators to accommodate various mounting plate depths.

Common Questions:

• Can this kit be used on 208V systems? Yes, while rated for 5000W at 240V, it effectively provides 3750W on 208V circuits.
• Does the coil need to be stretched before installation? Yes, the coil is close-wound and must be stretched evenly to the length of the insulators on the existing heater frame.
• Will this replace my specific OEM element? This is a universal restring kit designed to replace any heating coil with matching wattage and voltage requirements.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

34602 is the cross of HEK-500
