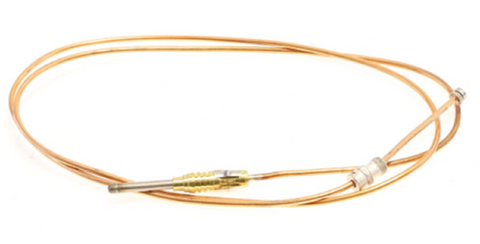

Modine 5H0693360007 Thermocouple

The Modine 5H0693360007 Thermocouple is the direct OEM replacement for 5H69336-7, engineered for high-accuracy flame rectification in industrial and commercial heating applications. As a critical safety component, this thermocouple generates the necessary millivolt signal to hold the pilot valve open during the heating cycle. It is designed specifically for compatibility with Modine PV, PAE, BAE, PA, and BA series heaters, including high-capacity units ranging from PV30 to PV400. Replacing a drifting or oxidized thermocouple with this genuine 5H0693360007 assembly prevents nuisance pilot outages and ensures the gas valve secures properly in the event of flame failure. Built to withstand the constant thermal stress found in unit heater burner boxes, this part provides the reliable millivolt flame sensing required by veteran HVAC contractors to restore system integrity and job-site safety.

Key Benefits for Technicians

• Direct OEM Match: Drops into existing pilot burner assemblies without modification, replacing legacy part number 5H69336-7.
• Broad Series Compatibility: Validated for use in Modine PAE75–PAE400, BAE75–BAE350, and standard PA/BA series power-vented units.
• Stable Millivolt Output: Ensures consistent signal strength to the gas valve solenoid, eliminating intermittent shutdowns.
• Rapid Response Time: Optimized thermal conductivity allows for quick pilot engagement and fast safety shut-off.
• Professional Grade Build: Designed to resist high-temperature oxidation and lead-wire degradation in heavy-duty heating cycles.

Common Questions

Will this thermocouple work for a Modine Hot Dawg HD unit?
This specific part is matched to PV, PAE, BAE, PA, and BA series heaters. While some Hot Dawg models use similar components, you should verify your specific model's parts list to ensure the lead length and threaded connection match the 5H0693360007 specifications.

What is the direct replacement for the discontinued 5H69336-7?
The Modine 5H0693360007 is the official direct replacement. It provides the same fit and function as the previous version used in older Modine unit heaters.

Are there specific installation requirements for this millivolt sensor?
Ensure the tip is properly positioned in the pilot flame (typically the top 3/8" to 1/2" of the tip) and that the connection to the gas valve is snug but not over-torqued to prevent damaging the internal copper lead or insulation.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
