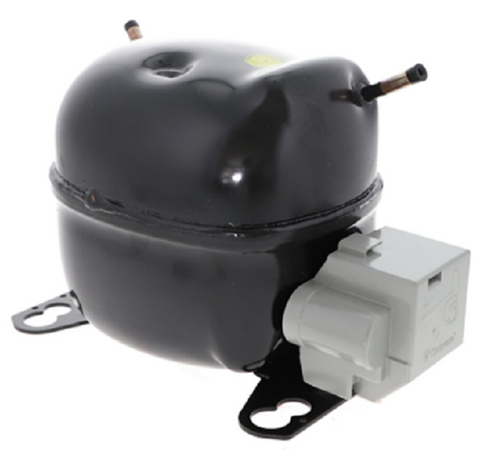

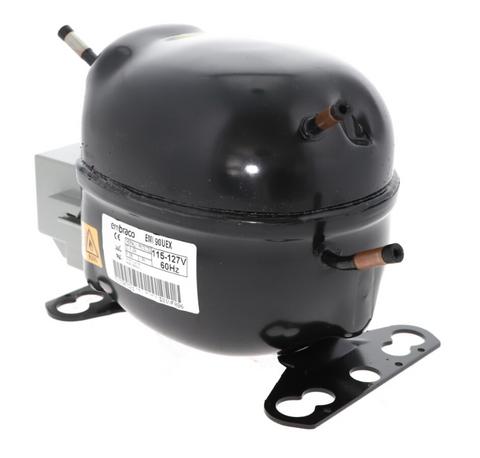

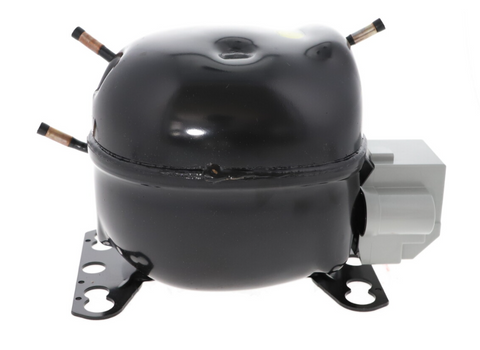

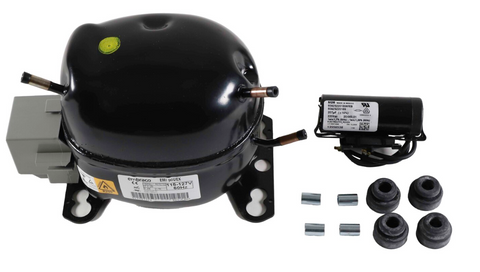

Nidec-Embraco EMI90UEX1 Compressor

115v1ph R290 1/4hp Compressor

Nidec-Embraco EMI90UEX1 Compressor – 1/4+ HP R290, 115V Single Phase

The Nidec-Embraco EMI90UEX1 Compressor is a high-performance, energy-efficient solution designed for both low and medium temperature refrigeration applications. Built with premium components, this 1/4+ HP compressor is optimized for systems using environmentally friendly R290 refrigerant and is ideal for commercial refrigeration units requiring compact and reliable performance.

Key Features:

• Horsepower: 1/4+ HP

• Voltage: 115V / 1 Phase

• Refrigerant: R290 (Eco-friendly Hydrocarbon)

• Application: Suitable for Low Temp & Medium Temp applications

• Oil Type: Polyol Ester

• Torque: High Starting Torque for demanding refrigeration needs

• Mounting Dimensions: 6.5" x 4.0"

• Compact Size: Length 13", Width 8", Height 8"

• Weight: 17.84 lbs

• Country of Origin: Brazil

• Discharge/Suction Line Connection: 0.26"

Part Numbers:

• Vendor Name: Embraco

• URI Part Number: EMI90UEX1

• Vendor Part Number: 513307321UA.2

This compressor is ideal for reach-in coolers, undercounter refrigerators, and display cases that require reliable cooling with reduced environmental impact.

⚠️ Prop 65 Warning: This product can expose you to chemicals including Carbon-black extracts, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Warranty policy for this compressor is one year from purchase and is only issued if an exact replacement compressor is ordered from our same vendor.

This item is not eligible for free shipping.
