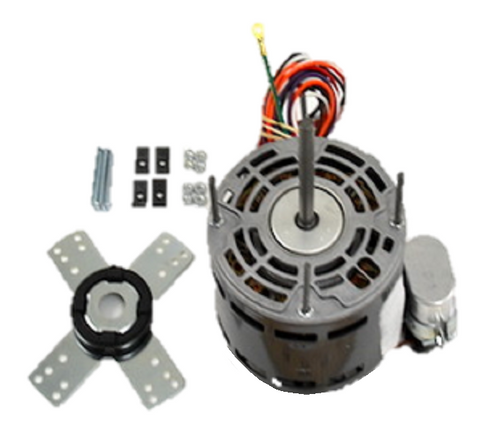

Nidec-US Motors 1471P Motor

Blower Motor, 1/10HP, 115/208-230Vac, Single Phase, 1050 RPM, 1 Speed, 1.7/0.8 Amps, 42Y NEMA Frame Size, Open Dripproof Air Over Enclosure, SAB Bearing, Hub or Stud Mount, Permanent Split Capacitor Motor

1471P is the direct replacement for 606 (Replacement is 1/10hp vs Original is 1/15hp), D497

Nidec-US Motors 1471P Blower Motor – 1/10 HP, 1050 RPM, 115/208-230V, Single Phase, PSC Motor

The Nidec-US Motors 1471P is a high-quality, energy-efficient 1/10 HP blower motor designed for reliable performance in residential and light commercial HVAC applications. With a Permanent Split Capacitor (PSC) design, this condenser fan motor operates at 1050 RPM and supports single-speed operation across 115/208-230V input, making it ideal for a wide range of systems.

Key Features:

• Horsepower: 1/10 HP

• Voltage: 115/208–230 VAC

• RPM: 1050

• Phase: Single

• Motor Type: Permanent Split Capacitor (PSC)

• Amperage: 1.7/0.8 Amps

• Frame: 42Y NEMA

• Rotation: Counter Clockwise (CCW)

• Bearing Type: Self-Aligning (SAB)

• Mounting Type: Hub or Stud Mount

• Enclosure: Open Dripproof, Air Over

• Duty: Continuous (S1)

• Insulation Class: B

• UL Listed and Recognized

• Country of Origin: Mexico

• UPC: 786382085643

Additional Specifications:

• Shaft Diameter: 3/8" (0.375")

• Shaft Length: 3.25"

• Lead Length: 30"

• Protection: Automatic reset

• Capacitor Rating: 5 µF

• Weight: 8 lbs

• Material Composition: Steel, Copper

This motor is built for durability, quiet operation, and maximum airflow efficiency. It’s a dependable choice for replacing OEM blower motors in HVAC systems that require robust start-up torque and long-term performance.

California Residents:

⚠ Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Visit www.P65Warnings.ca.gov for more information.

Upgrade your HVAC performance today with the trusted reliability of the Nidec-US Motors 1471P Blower Motor—designed for efficient cooling, consistent airflow, and lasting value.
